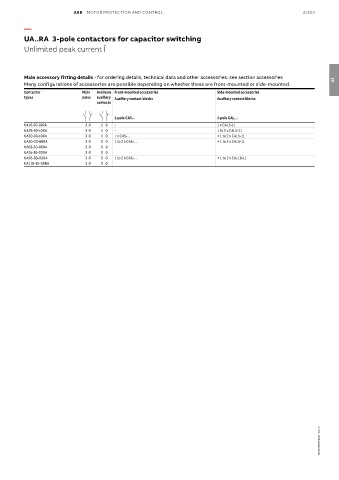

Page 297 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 3/223

—

UA..RA 3-pole contactors for capacitor switching
Unlimited peak current Î

Main accessory fitting details - for ordering details, technical data and other accessories: see section accessories 03
Many configurations of accessories are possible depending on whether these are front-mounted or side-mounted.
Contactor Main Available Front-mounted accessories Side-mounted accessories
types poles auxiliary Auxiliary contact blocks Auxiliary contact blocks
contacts

1-pole CA5-.. 2-pole CAL...
UA16-30-10RA 3 0 1 0 – 1 x CAL5-11
UA26-30-10RA 3 0 1 0 – 1 to 2 x CAL5-11
UA30-30-10RA 3 0 1 0 1 x CA5-... + 1 to 2 x CAL5-11
UA50-30-00RA 3 0 0 0 1 to 2 x CA5-... + 1 to 2 x CAL5-11
UA63-30-00RA 3 0 0 0
UA75-30-00RA 3 0 0 0
UA95-30-00RA 3 0 0 0 1 to 2 x CA5-... + 1 to 2 x CAL18-11
UA110-30-00RA 3 0 0 0
