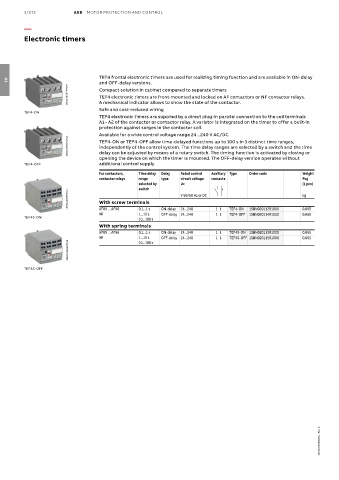

Electronic timers

TEF4 frontal electronic timers are used for realizing timing function and are available in ON-delay
and OFF-delay versions.
03
1sbc100004V0014 Compact solution in cabinet compared to separate timers
TEF4 electronic timers are front-mounted and locked on AF contactors or NF contactor relays.
A mechanical indicator allows to show the state of the contactor.
Safe and cost-reduced wiring
TEF4-ON
TEF4 electronic timers are supplied by a direct plug-in parallel connection to the coil terminals
A1 - A2 of the contactor or contactor relay. A varistor is integrated on the timer to offer a built-in
protection against surges in the contactor coil.
Available for a wide control voltage range 24...240 V AC/DC
1SBC100012V0014 TEF4-ON or TEF4-OFF allow time-delayed functions up to 100 s in 3 distinct time ranges,
independently of the control system. The time delay ranges are selected by a switch and the time
delay can be adjusted by means of a rotary switch. The timing function is activated by closing or
opening the device on which the timer is mounted. The OFF-delay version operates without
TEF4-OFF additional control supply.
For contactors, Time delay Delay Rated control Auxiliary Type Order code Weight
contactor relays range type circuit voltage contacts Pkg
selected by Uc (1 pce)
switch
1SBC101394F0014 With screw terminals V 50/60 Hz or DC kg

AF09 ... AF96
1...10 s
NF 0.1...1 s ON-delay 24...240 1 1 TEF4-ON 1SBN020112R1000 0.065
0.065
1SBN020114R1000
OFF-delay 24...240
TEF4-OFF
1 1
TEF4S-ON
10...100 s
With spring terminals
AF09 ... AF96 0.1...1 s ON-delay 24...240 1 1 TEF4S-ON 1SBN020113R1000 0.065
NF 1...10 s OFF-delay 24...240 1 1 TEF4S-OFF 1SBN020115R1000 0.065
1SBC101394F0014
10...100 s
TEF4S-OFF
