ABB MOTOR PROTECTION AND CONTROL 3/405

—

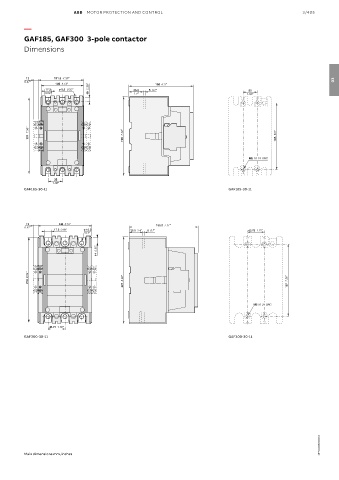

GAF185, GAF300 3-pole contactor
Dimensions

12 111.5 4.39"
0.47" 03
105 4.13" 160 6.3"
17.5 ø 8.5 0.33" 10 0.39" 35.5 5 0.2" 35
0.69" 1.4" 1.38"

187 7.36" 196 7.72" 165 6.5"

M5 10-24 UNC

35
1.38"
GAF185-30-11 GAF185-30-11

12 140 5.51" 180.5 7.11"
0.47"
17.5 0.69" ø 10.2 35.5 1.4" 5 0.2" 43.75 1.72"
0.4"
14 0.55"

219 8.62" 227 8.94" 187 7.36"

M5 10-24 UNC

43.75 1.72"
GAF300-30-11 GAF300-30-11

1SFC101180C0201

Main dimensions mm, inches
