4/84 ABB MOTOR PROTECTION AND CONTROL

—

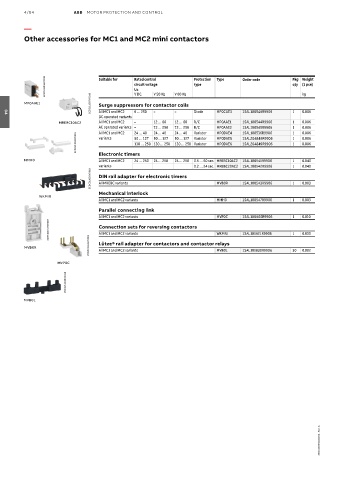

Other accessories for MC1 and MC2 mini contactors

2CDC211036V0019 Suitable for Rated control V 60 Hz Protection Type Order code Pkg Weight
(1 pce)
qty
type
circuit voltage
Uc
V DC
V 50 Hz
kg
2CDC211037V0019 Surge suppressors for contactor coils
MP0AAE1
All MC1 and MC2
DC operated variants 6 … 250 – – Diode MP0CAE3 1SAL100546R9906 1 0.006
04
MREBC10AC2 All MC1 and MC2 – 12 … 60 12 … 60 R/C MP0AAE1 1SAL100544R9906 1 0.006
AC operated variants – 24 … 48 72 … 250 72 … 250 R/C MP0AAE2 1SAL100545R9906 1 1 0.006
MP0DAE4
24 … 48
Varistor
All MC1 and MC2
24 … 48
1SAL100536R9906
0.006
2CDC211038V0019 variants 50 … 127 50 … 127 50 … 127 Varistor MP0DAE5 1SAL204848R9906 1 1 0.006
1SAL204849R9906
0.006
130 … 250 130 … 250
MP0DAE6
130 … 250 Varistor
Electronic timers
MMH0 All MC1 and MC2 24 … 250 24 … 250 24 … 250 0.5 … 60 sec. MREBC10AC2 1SAL100541R9906 1 0.040
variants 0.2 … 24 sec MREBC20AC2 1SAL100542R9906 1 0.040
2CDC211039V0019 DIN rail adapter for electronic timers MVB0R 1SAL100543R9906 1 0.003
All MREBC variants
Mechanical interlock
WKMIU
All MC1 and MC2 variants MMH0 1SAL100547R9906 1 0.003
Parallel connecting link
All MC1 and MC2 variants MVP0C 1SAL100600R9906 1 0.010
2CDC211040V0019 Connection sets for reversing contactors WKMIU 1SAL101421R9906 1 0.030
All MC1 and MC2 variants
2CDC211041V0019 Lütze® rail adapter for contactors and contactor relays
MVB0R All MC1 and MC2 variants MVB0L 1SAL101830R9906 30 0.002
MVP0C
2CDC211042V0019

MVB0L

2CDC103063C0202 - Rev. A
