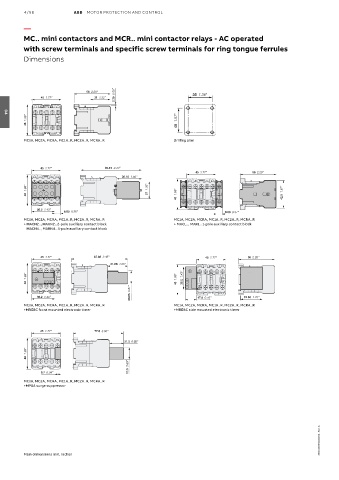

Page 614 - Motor protection and control Manual motor starters, contactors and overload relays

4/98 ABB MOTOR PROTECTION AND CONTROL

—
MC.. mini contactors and MCR.. mini contactor relays - AC operated

with screw terminals and specific screw terminals for ring tongue ferrules
Dimensions

2.25 0.08’’ 35 1.38"
56 2.20’’
45 1.77’’ 31 1.22’’

48 1.89’’ 40 1.57"
04

MC1A, MC2A, MCRA, MC1A..R, MC2A..R, MCRA..R Drilling plan

45 1.77’’ 94.15 3.70’’
45 1.77’’ 56 2.20’’
38.15 1.50’’
48 1.89’’ 27 1.06’’ 48 1.89’’ 42.5 1.67’’

36.2 1.43’’
8.80 0.35’’ 9.80 0.37’’
MC1A, MC2A, MCRA, MC1A..R, MC2A..R, MCRA..R MC1A, MC2A, MCRA, MC1A..R, MC2A..R, MCRA..R
+ MACN2.., MARN2.. 2-pole auxiliary contact block + MACL.., MARL.. 1-pole auxiliary contact block
MACN4.., MARN4.. 4-pole auxiliary contact block

45 1.77’’ 87.66 3.45’’ 45 1.77’’ 56 2.20’’
31.66 1.25’’
48 1.89’’ 48 1.89’’ 36.2 1.43’’
20.65 0.81’’

36.2 1.43’’ 17.8 0.70’’ 31.66 1.25’’
MC1A, MC2A, MCRA, MC1A..R, MC2A..R, MCRA..R MC1A, MC2A, MCRA, MC1A..R, MC2A..R, MCRA..R
+MREBC front mounted electronic timer +MREBC side mounted electronic timer

45 1.77’’ 77.5 3.05’’
21.5 0.85’’
48 1.89’’

17.5 0.69’’
8.7 0.34’’
MC1A, MC2A, MCRA, MC1A..R, MC2A..R, MCRA..R
+MP0A surge suppressor

2CDC103063C0202 - Rev. A

Main dimensions mm, inches
