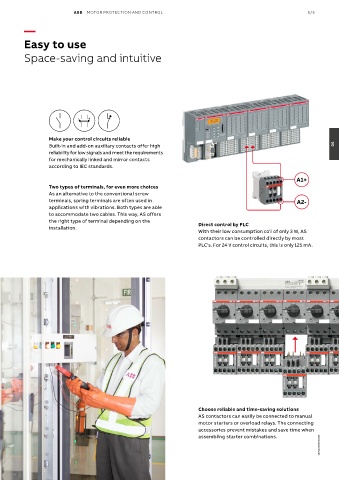

ABB MOTOR PROTECTION AND CONTROL 5/5

—

Easy to use

Space-saving and intuitive

Make your control circuits reliable
Built-in and add-on auxiliary contacts offer high 05
reliability for low signals and meet the requirements
for mechanically linked and mirror contacts
according to IEC standards.

A1+
Two types of terminals, for even more choices
As an alternative to the conventional screw
terminals, spring terminals are often used in A2-
applications with vibrations. Both types are able
to accommodate two cables. This way, AS offers
the right type of terminal depending on the Direct control by PLC
installation.
With their low consumption coil of only 3 W, AS
contactors can be controlled directly by most
PLC's. For 24 V control circuits, this is only 125 mA.

Choose reliable and time-saving solutions
AS contactors can easily be connected to manual
motor starters or overload relays. The connecting
accessories prevent mistakes and save time when
assembling starter combinations.
