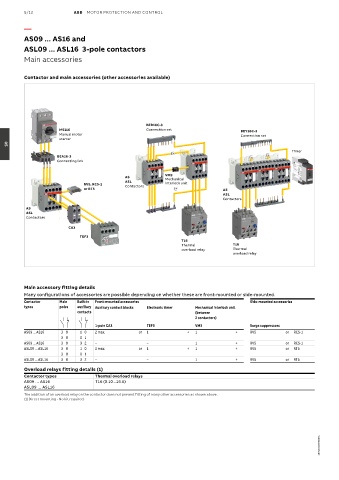

Page 628 - Motor protection and control Manual motor starters, contactors and overload relays

5/12 ABB MOTOR PROTECTION AND CONTROL

—

AS09 ... AS16 and
ASL09 ... ASL16 3-pole contactors
Main accessories

Contactor and main accessories (other accessories available)

BER16C-3
MS116 Connection set BEY16C-3
Manual motor Connection set
starter
05
Timer
BEA16-3
Connecting link

VM3
AS Mechanical
ASL
RV5, RC5-1 Contactors interlock unit
or RT5 AS
ASL
Contactors
AS
ASL
Contactors
CA3
TEF3
T16
Thermal T16
overload relay Thermal
overload relay

Main accessory fitting details
Many configurations of accessories are possible depending on whether these are front-mounted or side-mounted.
Contactor Main Built-in Front-mounted accessories Side-mounted accessories
types poles auxiliary Auxiliary contact blocks Electronic timer Mechanical interlock unit
contacts (between
2 contactors)
1-pole CA3 TEF3 VM3 Surge suppressors
AS09 ... AS16 3 0 1 0 2 max. or 1 + 1 + RV5 or RC5-1
3 0 0 1
AS09 ... AS16 3 0 3 2 – – 1 + RV5 or RC5-1
ASL09 ... ASL16 3 0 1 0 2 max. or 1 + 1 + RV5 or RT5
3 0 0 1
ASL09 ... ASL16 3 0 3 2 – – 1 + RV5 or RT5
Overload relays fitting details (1)
Contactor types Thermal overload relays
AS09 … AS16 T16 (0.10...16 A)
ASL09 … ASL16
The addition of an overload relay on the contactor does not prevent fitting of many other accessories as shown above.
(1) Direct mounting - No kit required.

1SBC101297S0201
