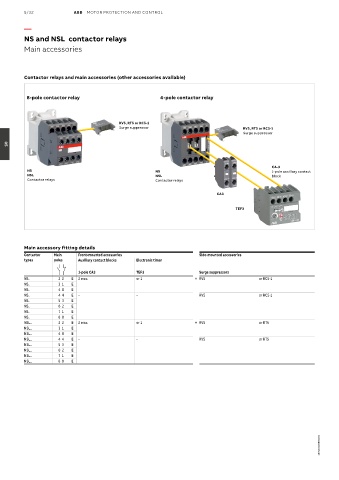

NS and NSL contactor relays
Main accessories

Contactor relays and main accessories (other accessories available)

8-pole contactor relay 4-pole contactor relay

RV5, RT5 or RC5-1
Surge suppressor RV5, RT5 or RC5-1
Surge suppressor

05

CA-3
NS NS 1-pole auxiliary contact
NSL NSL block
Contactor relays Contactor relays

CA3

TEF3

Main accessory fitting details
Contactor Main Front-mounted accessories Side-mounted accessories
types poles Auxiliary contact blocks Electronic timer

1-pole CA3 TEF3 Surge suppressors
NS.. 2 2 E 2 max. or 1 + RV5 or RC5-1
NS.. 3 1 E
NS.. 4 0 E
NS.. 4 4 E – – RV5 or RC5-1
NS.. 5 3 E
NS.. 6 2 E
NS.. 7 1 E
NS.. 8 0 E
NSL.. 2 2 E 2 max. or 1 + RV5 or RT5
NSL.. 3 1 E
NSL.. 4 0 E
NSL.. 4 4 E – – RV5 or RT5
NSL.. 5 3 E
NSL.. 6 2 E
NSL.. 7 1 E
NSL.. 8 0 E
