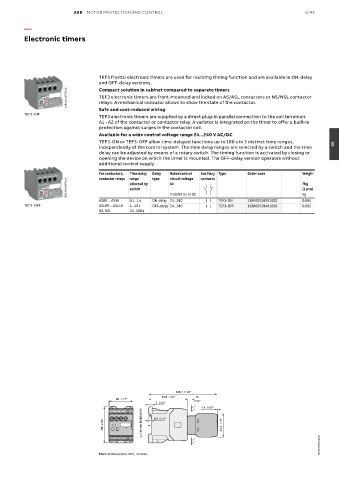

ABB MOTOR PROTECTION AND CONTROL 5/45

—

Electronic timers

TEF3 frontal electronic timers are used for realizing timing function and are available in ON-delay
and OFF-delay versions.
Compact solution in cabinet compared to separate timers
1SBC101337F0010 TEF3 electronic timers are front-mounted and locked on AS/ASL contactors or NS/NSL contactor
relays. A mechanical indicator allows to show the state of the contactor.
Safe and cost-reduced wiring
TEF3-ON
TEF3 electronic timers are supplied by a direct plug-in parallel connection to the coil terminals
A1 - A2 of the contactor or contactor relay. A varistor is integrated on the timer to offer a built-in
protection against surges in the contactor coil.
Available for a wide control voltage range 24...240 V AC/DC
TEF3-ON or TEF3-OFF allow time-delayed functions up to 100 s in 3 distinct time ranges, 05
independently of the control system. The time delay ranges are selected by a switch and the time
delay can be adjusted by means of a rotary switch. The timing function is activated by closing or
opening the device on which the timer is mounted. The OFF-delay version operates without
additional control supply.

For contactors, Time delay Delay Rated control Auxiliary Type Order code Weight
type
range
circuit voltage
contacts
contactor relays
1SBC101336F0010 selected by Uc Pkg
switch
(1 pce)
kg
V 50/60 Hz or DC
AS09 ... AS16 0.1...1 s ON-delay 24...240 1 1 TEF3-ON 1SBN021012R1000 0.065
TEF3-OFF ASL09 ... ASL16 1...10 s OFF-delay 24...240 1 1 TEF3-OFF 1SBN021014R1000 0.065
NS, NSL 10...100 s

128.1 5.04"
72.5 2.85" 10 35 1.38"
45 1.77" 0.39" 2 x
7 0.28" M4 8-32 UNC ø 4.2 0.17"
1.1 0.05"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 44.2 1.74" 44.4 1.75" 60 2.36" 50 1.97"

1SBC101504S0201

Main dimensions mm, inches
