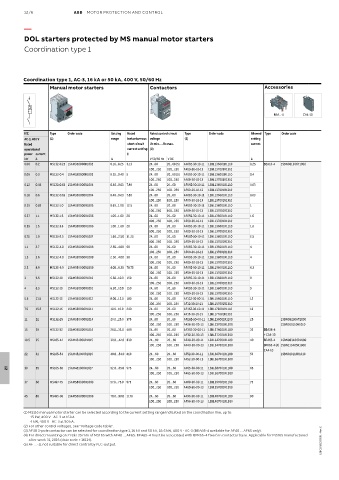

Page 840 - Motor protection and control Manual motor starters, contactors and overload relays

12/6 ABB MOTOR PROTECTION AND CONTROL

—

DOL starters protected by MS manual motor starters
Coordination type 1

Coordination type 1, AC-3, 16 kA or 50 kA, 400 V, 50/60 Hz
Manual motor starters Contactors Accessories

I >
BEA..-4 CA4-10

IEC Type Order code Setting Rated Rated control circuit Type Order code Allowed Type Order code
AC-3, 400 V (1) range instantaneous voltage (3) setting
Rated short-circuit Uc min. ... Uc max. current
operational current setting (2)
power current Ii
kW A A V 50/60 Hz V DC A
0.06 0.2 MS132-0.25 1SAM350000R1002 0.16...0.25 3.13 24...60 20...60 (5) AF09Z-30-10-11 1SBL136001R1110 0.25 BEA16-4 1SBN081306T1000
100...250 100...250 AF09-30-10-13 1SBL137001R1310
0.09 0.3 MS132-0.4 1SAM350000R1003 0.25...0.40 5 24...60 20...60 (5) AF09Z-30-10-11 1SBL136001R1110 0.4
100...250 100...250 AF09-30-10-13 1SBL137001R1310
0.12 0.44 MS132-0.63 1SAM350000R1004 0.40...0.63 7.88 24...60 20...60 AF09Z-30-10-11 1SBL136001R1110 0.63
100...250 100...250 AF09-30-10-13 1SBL137001R1310
0.18 0.6 MS132-0.63 1SAM350000R1004 0.40...0.63 7.88 24...60 20...60 AF09Z-30-10-11 1SBL136001R1110 0.63
100...250 100...250 AF09-30-10-13 1SBL137001R1310
0.25 0.85 MS132-1.0 1SAM350000R1005 0.63...1.00 12.5 24...60 20...60 AF09Z-30-10-11 1SBL136001R1110 1
100...250 100...250 AF09-30-10-13 1SBL137001R1310
0.37 1.1 MS132-1.6 1SAM350000R1006 1.00...1.60 20 24...60 20...60 AF09Z-30-10-11 1SBL136001R1110 1.6
100...250 100...250 AF09-30-10-13 1SBL137001R1310
0.55 1.5 MS132-1.6 1SAM350000R1006 1.00...1.60 20 24...60 20...60 AF09Z-30-10-11 1SBL136001R1110 1.6
100...250 100...250 AF09-30-10-13 1SBL137001R1310
0.75 1.9 MS132-2.5 1SAM350000R1007 1.60...2.50 31.25 24...60 20...60 AF09Z-30-10-11 1SBL136001R1110 2.5
100...250 100...250 AF09-30-10-13 1SBL137001R1310
1.1 2.7 MS132-4.0 1SAM350000R1008 2.50...4.00 50 24...60 20...60 AF09Z-30-10-11 1SBL136001R1110 4
100...250 100...250 AF09-30-10-13 1SBL137001R1310
1.5 3.6 MS132-4.0 1SAM350000R1008 2.50...4.00 50 24...60 20...60 AF09Z-30-10-11 1SBL136001R1110 4
100...250 100...250 AF09-30-10-13 1SBL137001R1310
2.2 4.9 MS132-6.3 1SAM350000R1009 4.00...6.30 78.75 24...60 20...60 AF09Z-30-10-11 1SBL136001R1110 6.3
100...250 100...250 AF09-30-10-13 1SBL137001R1310
3 6.5 MS132-10 1SAM350000R1010 6.30...10.0 150 24...60 20...60 AF09Z-30-10-11 1SBL136001R1110 9
100...250 100...250 AF09-30-10-13 1SBL137001R1310
4 8.5 MS132-10 1SAM350000R1010 6.30...10.0 150 24...60 20...60 AF09Z-30-10-11 1SBL136001R1110 9
100...250 100...250 AF09-30-10-13 1SBL137001R1310
5.5 11.5 MS132-12 1SAM350000R1012 8.00...12.0 180 24...60 20...60 AF12Z-30-10-11 1SBL156001R1110 12
100...250 100...250 AF12-30-10-13 1SBL157001R1310
7.5 15.5 MS132-16 1SAM350000R1011 10.0...16.0 240 24...60 20...60 AF16Z-30-10-11 1SBL176001R1110 16
100...250 100...250 AF16-30-10-13 1SBL177001R1310
11 22 MS132-25 1SAM350000R1014 20.0...25.0 375 24...60 20...60 AF26Z-30-00-11 1SBL236001R1100 25 1SBN082306T2000
100...250 100...250 AF26-30-00-13 1SBL237001R1300 1SBN010110R1010
15 29 MS132-32 1SAM350000R1015 25.0...32.0 480 24...60 20...60 AF30Z-30-00-11 1SBL276001R1100 32 BEA38-4
100...250 100...250 AF30-30-00-13 1SBL277001R1300 + CA4-10
18.5 35 MS165-42 1SAM451000R1015 30.0…42.0 630 24…60 20…60 AF40-30-00-11 1SBL347001R1100 40 BEA65-4 1SBN083406R1000
100...250 100...250 AF40-30-00-13 1SBL347001R1300 BPR65-4 (4) 1SBN113405R1000
CA4-10
22 41 MS165-54 1SAM451000R1016 40.0…54.0 810 24…60 20…60 AF52-30-00-11 1SBL367001R1100 53 1SBN010110R1010
100...250 100...250 AF52-30-00-13 1SBL367001R1300
30 55 MS165-65 1SAM451000R1017 52.0…65.0 975 24…60 20…60 AF65-30-00-11 1SBL387001R1100 65
12
100...250 100...250 AF65-30-00-13 1SBL387001R1300
37 66 MS497-75 1SAM580000R1008 57.0…75.0 975 24…60 20…60 AF80-30-00-11 1SBL397001R1100 75
100...250 100...250 AF80-30-00-13 1SBL397001R1300
45 80 MS495-90 1SAM550000R1009 70.0…90.0 1170 24…60 20…60 AF96-30-00-11 1SBL407001R1100 90
100...250 100...250 AF96-30-00-13 1SBL407001R1300
(1) MS116 manual motor starter can be selected according to the current setting range indicated on the coordination line, up to:
- 15 kW, 400 V - AC-3 at 16 kA
- 4 kW, 400 V - AC-3 at 50 kA.
(2) For other control voltages, see "Voltage code table".
(3) AF38 3-pole contactor can be selected for coordination type 1, 16 kA and 50 kA, 18.5 kW, 400 V - AC-3 (BEA65-4 available for AF40 ... AF65 only).
(4) For direct mounting on 2 rails 35 mm of MS165 with AF40 ... AF65: BEA65-4 must be associated with BPR65-4 fixed on contactor base. Applicable for MS165 manufactured
after week 31, 2016 (date code > 16114). 1SBC101913S0201 - Rev. E
(5) AF ... -11 not suitable for direct control by PLC-output.
