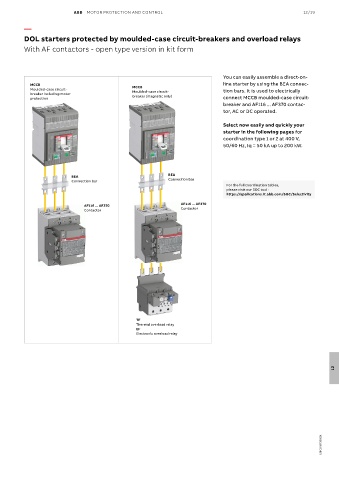

DOL starters protected by moulded-case circuit-breakers and overload relays
With AF contactors - open type version in kit form

You can easily assemble a direct-on-
MCCB MCCB line starter by using the BEA connec-
Moulded-case circuit- Moulded-case circuit- tion bars. It is used to electrically
breaker including motor breaker (magnetic only)
protection connect MCCB moulded-case circuit-
breaker and AF116 ... AF370 contac-
tor, AC or DC operated.

Select now easily and quickly your
starter in the following pages for
coordination type 1 or 2 at 400 V,
50/60 Hz, Iq = 50 kA up to 200 kW.

BEA
BEA Connection bar
Connection bar
For the full coordination tables,
please visit our SOC tool :
https://applications.it.abb.com/SOC/Selectivity
AF116 ... AF370 AF116 ... AF370
Contactor Contactor

TF
Thermal overload relay
EF
Electronic overload relay
