Page 879 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 12/45

—

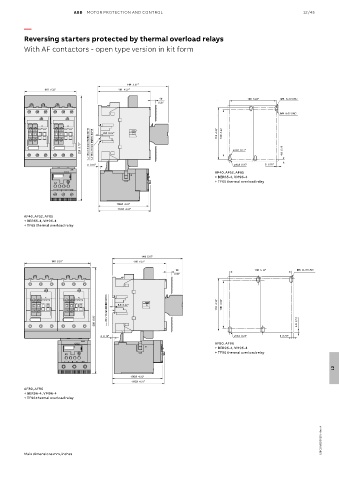

Reversing starters protected by thermal overload relays
With AF contactors - open type version in kit form

144 5.67"
110 4.33" 111 4.37"
10 100 3.94" M6 ¼-20 UNC
0.39"
M4 8-32 UNC

35 x 7.5 mm EN/IEC 60715 35 x 15 mm EN/IEC 60715 5.5 0.22" 110 4.33" 100 3.94"

223 8.78" ø 4.2 0.17" 4.6 0.18"

4 0.16" ø 6.4 0.25" 5 0.20"
AF40, AF52, AF65
+ BER65-4, VM96-4
+ TF65 thermal overload relay

106.8 4.20"
110.6 4.35"
AF40, AF52, AF65
+ BER65-4, VM96-4
+ TF65 thermal overload relay

149 5.87"
140 5.51" 116 4.57"
10 130 5.12" M6 ¼-20 UNC
0.39"

35 x 15 mm EN/IEC 60715 5.5 0.22" 110 4.33" 100 3.94"

226 8.90" 4.6 0.18"

4 0.16" ø 6.4 0.25" 5 0.20"
AF80, AF96
+ BER96-4, VM96-4
+ TF96 thermal overload relay

12
106.8 4.20"
110.9 4.37"
AF80, AF96
+ BER96-4, VM96-4
+ TF96 thermal overload relay

1SBC101929S0201 - Rev. A

Main dimensions mm, inches
