13/2 ABB MOTOR PROTECTION AND CONTROL

—

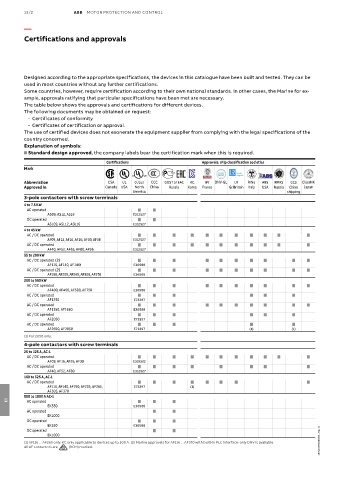

Certifications and approvals

Designed according to the appropriate specifications, the devices in this catalogue have been built and tested. They can be
used in most countries without any further certifications.
Some countries, however, require certification according to their own national standards. In other cases, the Marine for ex-
ample, approvals ratifying that particular specifications have been met are necessary.
The table below shows the approvals and certifications for different devices.
The following documents may be obtained on request:
- Certificates of conformity
- Certificates of certification or approval.
The use of certified devices does not exonerate the equipment supplier from complying with the legal specifications of the
country concerned.
Explanation of symbols:
Standard design approved, the company labels bear the certification mark when this is required.
Certifications Approvals: ship classification societies
Mark

ABS
BV
RINa
Abbreviation CSA UL cULus CCC GOST KC BV DNV-GL LR Rina ABS RMRS CCS ClassNK
RMRS
GOST or EAC
Approved in Canada USA North China Russia Korea France Gr.Britain Italy USA Russia China Japan
America shipping
3-pole contactors with screw terminals
4 to 7.5 KW
AC operated
AS09, AS12, AS16 E312527
DC operated
ASL09, ASL12, ASL16 E312527
4 to 45 kW
AC / DC operated
AF09, AF12, AF16, AF26, AF30, AF38 E312527
AC / DC operated
AF40, AF52, AF65, AF80, AF96 E312527
55 to 200 kW
AC / DC operated (2)
AF116, AF140, AF146t E36588
AC / DC operated (2)
AF190, AF205, AF265, AF305, AF370 E36588
200 to 560 kW
AC / DC operated
AF400, AF460, AF580, AF750 E36588
AC / DC operated
AF1250 E73397
AC / DC operated
AF1350, AF1650 E36588
AC / DC operated
AF2050 E73397
AC / DC operated
AF2650, AF2850 E73397 (1) (1)
(1) For 2650 only.
4-pole contactors with screw terminals
25 to 125 A, AC-1
AC / DC operated
AF09, AF16, AF26, AF38 E319322
AC / DC operated
AF40, AF52, AF80 E312527
160 to 525 A, AC-1
AC / DC operated
AF116, AF140, AF190, AF205, AF265, E73397 (1)
AF305, AF370
800 to 1000 A AC-1
AC operated
13
EK550 E36588
AC operated
EK1000
DC operated
EK550 E36588
DC operated
EK1000
(1) AF116 ... AF265 only. KC only applicable to devices up to 300 A. (2) Marine approvals for AF116 ... AF370 with built-in PLC interface: only DNV is available. 1SBC100059S0201 - Rev. D
All AF contactors are (RCM) marked.
