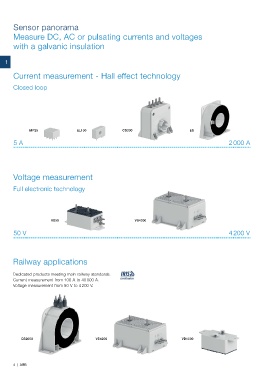

Sensor panorama
Measure DC, AC or pulsating currents and voltages
with a galvanic insulation
1
Current measurement - Hall effect technology
Closed loop
MP25 EL100 CS300 ES
5 A 2 000 A
Voltage measurement
Full electronic technology
VS50 VS4200
50 V 4 200 V
Railway applications
Dedicated products meeting main railway standards.
Current measurement from 100 A to 40 000 A.
Voltage measurement from 50 V to 4 200 V.
CS2000 VS4200 VD1500
