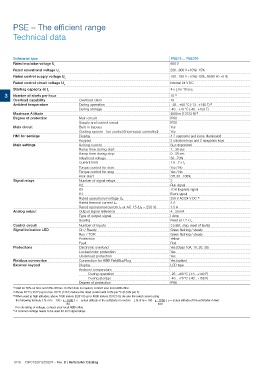

PSE – The efficient range

Technical data

Softstarter type PSE18 ... PSE370
Rated insulation voltage U 600 V
i
Rated operational voltage U e 208...600 V +10%/-15%
Rated control supply voltage U s 100...250 V +10%/-15%, 50/60 Hz ±5 %
Rated control circuit voltage U c Internal 24 V DC
Starting capacity at I 4 x I for 10 sec.
e e
3 Number of starts per hour 10 1)
Overload capability Overload class 10
Ambient temperature During operation -25…+60 °C (-13...+140 F) 2)
During storage -40…+70 °C (-40...+158 F)
Maximum Altitude 4000 m (13123 ft) 3)
Degree of protection Main circuit IP00
Supply and control circuit IP20
Main circuit Built-in bypass Yes
Cooling system - fan cooled (thermostat controlled) Yes
HMI for settings Display 4 7-segments and icons. Illuminated
Keypad 2 selection keys and 2 navigation keys
Main settings Setting current Size dependent
Ramp time during start 1...30 sec
Ramp time during stop 0...30 sec
Initial/end voltage 30...70%
Current limit 1.5...7 x I e
Torque control for start Yes / No
Torque control for stop Yes / No
Kick start Off, 30...100%
Signal relays Number of signal relays 3
K2 Run signal
K3 TOR (bypass) signal
K1 Event signal
250 V AC/24 V DC 4)
Rated operational voltage Ue
Rated thermal current Ith 3 A
at AC-15 (Ue = 250 V) 1.5 A
Rated operational current Ie
Analog output Output signal reference 4...20 mA
Type of output signal I Amp
Scaling Fixed at 1.2 x I e
Control circuit Number of inputs 3 (start, stop, reset of faults)
Signal indication LED On / Ready Green flashing / steady
Run / TOR Green flashing / steady
Protection Yellow
Fault Red
Protections Electronic overload Yes (Class 10A, 10, 20, 30)
Locked rotor protection Yes
Underload protection Yes
Fieldbus connection Connection for ABB FieldBusPlug Yes (option)
External keypad Display LCD type
Ambient temperature
During operation -25...+60 ºC (-13...+140 F)
During storage -40...+70 ºC (-40...+158 F)
Degree of protection IP66
1) Valid for 50% on time and 50% off time. If other data is required, contact your local ABB office.
2) Above 40 ºC (104 F) up to max. 60 ºC (140 F) reduce the rated current with 0.6% per ºC (0,33% per F).
3) When used at high altitudes, above 1000 meters (3281 ft) up to 4000 meters (13123 ft), de-rate the rated current using
the following formula. [ % of Ie = 100 - x - 1000 ] x = actual altitude of the softstarter in meters. [ % of Ie = 100 - y - 3280 ] y = actual altitude of the softstarter in feet.
150 480
For de-rating of voltage, contact your local ABB office.
4) A common voltage needs to be used for all 3 signal relays.
