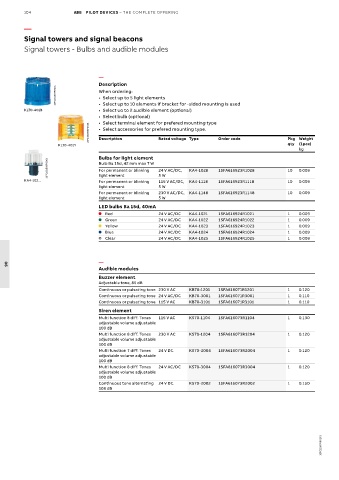

104 ABB PILOT DEVICES – THE COMPLETE OFFERING

—

Signal towers and signal beacons
Signal towers - Bulbs and audible modules

—
Description
1SFC151507F0001 When ordering:
• Select up to 5 light elements

• Select uo to 2 audible element (optional)
KL70-401B • Select up to 10 elements if bracket for -sided mounting is used
• Select bulb (optional)
• Select terminal element for prefered mounting type
1SFC151508F0001 • Select accessories for prefered mounting type.

qty
(1pce)
KL70-401Y Description Rated voltage Type Order code Pkg Weight
kg
Bulbs for light element
1SFC151509F0001 Bulb Ba 15d, 42 mm max 7 W 24 V AC/DC, KA4-1028 1SFA616923R1028 10 0.009
For permanent or blinking
KA4-102... light element 5 W 1SFA616923R1118 10 0.009
115 V AC/DC, KA4-1118
For permanent or blinking
light element 5 W
For permanent or blinking 230 V AC/DC, KA4-1148 1SFA616923R1148 10 0.009
light element 5 W
LED bulbs Ba 15d, 40mA
l Red 24 V AC/DC KA4-1021 1SFA616924R1021 1 0.009
l Green 24 V AC/DC KA4-1022 1SFA616924R1022 1 0.009
l Yellow 24 V AC/DC KA4-1023 1SFA616924R1023 1 0.009
l Blue 24 V AC/DC KA4-1024 1SFA616924R1024 1 0.009
Clear 24 V AC/DC KA4-1025 1SFA616924R1025 1 0.009

—
Audible modules
06
Buzzer element
Adjustable tone, 85 dB
Continuous or pulsating tone 230 V AC KB70-1201 1SFA616071R1201 1 0.120
Continuous or pulsating tone 24 V AC/DC KB70-3001 1SFA616071R3001 1 0.110
Continuous or pulsating tone 115 V AC KB70-3101 1SFA616071R3101 1 0.110
Siren element
Multi function 8 diff. Tones 115 V AC KS70-1104 1SFA616073R1104 1 0.130
adjustable volume adjustable
100 dB
Multi function 8 diff. Tones 230 V AC KS70-1204 1SFA616073R1204 1 0.120
adjustable volume adjustable
100 dB
Multi function 7 diff. Tones 24 V DC KS70-2004 1SFA616073R2004 1 0.120
adjustable volume adjustable
100 dB
Multi function 8 diff. Tones 24 V AC/DC KS70-3004 1SFA616073R3004 1 0.120
adjustable volume adjustable
100 dB
Continuous tone alternating 24 V DC KS70-2002 1SFA616073R2002 1 0.150
108 dB
