12 ABB PILOT DEVICES – THE COMPLETE OFFERING

—

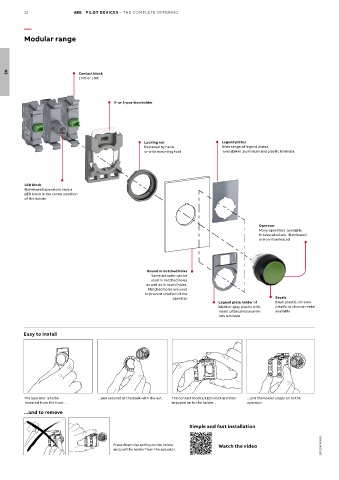

Modular range

Contact block
02
1 NO or 1 NC

3- or 5-position holder

Locking nut Legend plates
Fastened by hand Wide range of legend plates
or with mounting tool available in aluminium and plastic laminate

LED block
Illuminated operators have a
LED block in the center position
of the holder

Operator
Many operators available
in several colors. Illuminated
or non-illuminated

Round or notched holes
Same actuator can be
used in notched holes
as well as in round holes.
Notched holes are used
to prevent rotation of the
operator Bezels
Legend plate holder of Black plastic, chrome
black or grey plastic with plastic or chrome metal
insert of brushed alumin- available
ium laminate

Easy to install

The operator is to be ...and secured at the back with the nut. The contact blocks/LED block are then ...and the holder snaps on to the
inserted from the front... snapped on to the holder... operator.
...and to remove

Simple and fast installation
1SFC151003S0201
Press down the spring on the holder
Watch the video
and pull the holder from the actuator.
