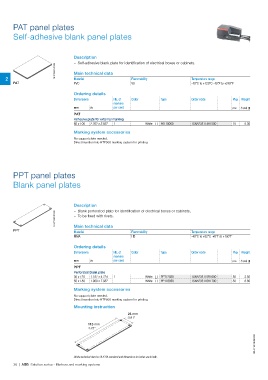

P. 38
PAT panel plates
Self-adhesive blank panel plates
1SNC700214F0000 Description
–– Self-adhesive blank plate for identification of electrical boxes or cabinets.
2 Main technical data Flammability Temperature range
PAT V0 -40°C to +120°C -40°F to +248°F
Material
PVC
Ordering details Nb. of Color Type Order code Pkg Weight
markers PAT10060 1SNA235114R1500 pce (1 pce) g
Dimensions per card
15 5.30
mm in
PAT White
Adhesive plate for external marking
60 x 100 2.262 x 3.937 1
Marking system accessories
No support plate needed.
Direct insertion into HTP500 marking system for printing.
PPT panel plates
Blank panel plates
1SNC700213F0000 Description
–– Blank perforated plate for identification of electrical boxes or cabinets,
–– To be fixed with rivets.
PPT Main technical data
Material Flammability Temperature range
MMA HB -40°C to +82°C -40°F to +180°F
Ordering details Nb. of Color Type Order code Pkg Weight
markers pce (1 pce) g
Dimensions per card White PPT12030 1SNA235115R1600
White PPT18050 1SNA235116R1700 50 3.50
mm in 1 30 8.80
PPT
Perforated blank plate
30 x 120 1.181 x 4.724
50 x 180 1.969 x 7.087
Marking system accessories
No support plate needed.
Direct insertion into HTP500 marking system for printing.
Mounting instruction
23 mm
0.91"
113 mm
4.45"
1SNC160199S0201
All the technical data for UL/CSA standard and dimensions in inches are in italic.
36 | ABB Solution series - Markers and marking systems
