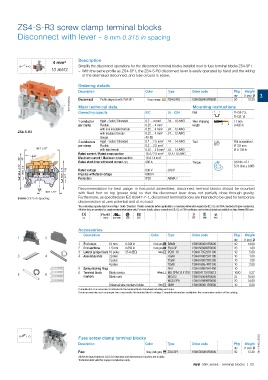

Page 125 - 1SNK160027C0207_SNK Series Terminal Blocks

ZS4-S-R3 screw clamp terminal blocks

Disconnect with lever - 8 mm 0.315 in spacing

4 mm² Description
Simplify the disconnect operations for the disconnect terminal blocks installed next to fuse terminal blocks ZS4-SF1:
10 AWG – With the same profile as ZS4-SF1, the ZS4-S-R3 disconnect lever is easily operated by hand and the wiring
of the alternated disconnect and fuse circuits is easier.

Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g 3
1SNK161032F0014 Main technical data Mounting instructions
Profile aligned with ZS4-SF1
Disconnect
13.30
50
1SNK508416R0000
Grey, orange
ZS4-S-R3
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 0.2 ... 4 mm² 24 ... 10 AWG Wire stripping 11 mm
per clamp Flexible 0.22 ... 4 mm² length 0.432 in
with non insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
ZS4-S-R3
with insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
Gauge A3-B3
2 conductors Rigid - Solid / Stranded 0.2 ... 2.5 mm² 24 ... 14 AWG Tool Flat screwdriver
per clamp Flexible 0.2 ... 2.5 mm² Ø 3.5 mm
59.7 2.35"
with twin ferrule 0.22 ... 2.5 mm² 24 ... 14 AWG Ø 0.138 in
Rated current / Rated cross section 18 A / 2.5 mm² 18 A / 10 AWG
180°
90° 90° Maximum current / Maximum cross section 18 A / 4 mm²
Rated short-time withstand current (1s) 300 A Torque 0.6 Nm ± 0.1
96.3 3.79" 88.8 3.5" 54.6 2.15" 47.1 1.85" Rated voltage 630 V 300 V 5.31 lb.in ± 0.885
Impulse withstand voltage
6000 V
NEMA 1
Protection
IP20
Recommendation for best usage: in horizontal assemblies, disconnect terminal blocks should be mounted
32.9 1.30" with fixed foot on top (power side) so that the disconnect lever does not partially close through gravity.
8 mm 0.315 in spacing Furthermore, as specified per IEC 60947-7-1, disconnect terminal blocks are intended to be used for temporary
disconnection at zero potential and at no load.
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.ABB.com
CE RoHS USR CNR CSA EAC BV DNV Rina
Accessories
Description Color Type Order code Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 1.5 mm 0.059 in Dark grey ES4-SF 1SNK508960R0000 20 1.80
3 Lateral jumper bars 10 poles 35 A (IEC) Grey PC81-10 1SNA173523R1100 10 5.00
3 4 4 Assembly rods 2 poles TGA8 1SNA168672R1100 10 1.00
3 poles TGA8 1SNA168673R1200 10 1.50
4 poles TGA8 1SNA168674R1300 10 2.00
5 Spring retaining Rings ANT 1SNA168675R1400 10
6 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
5 6
markers Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Fuse screw clamp terminal blocks
Description Color Type Order code Pkg Weight 1SNK161044S0201
qty (1 pce) g
Fuse Grey, dark grey ZS4-SF1 1SNK508410R0000 50 13.30
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNK series - Terminal blocks | 121
