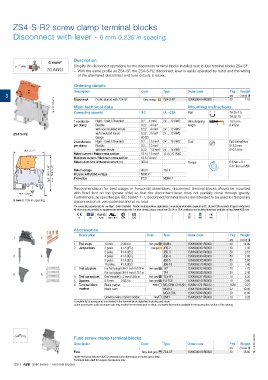

Page 132 - 1SNK160027C0207_SNK Series Terminal Blocks

ZS4-S-R2 screw clamp terminal blocks

Disconnect with lever - 6 mm 0.236 in spacing

4 mm² Description
Simplify the disconnect operations for the disconnect terminal blocks installed next to fuse terminal blocks ZS4-SF:
10 AWG – With the same profile as ZS4-SF, the ZS4-S-R2 disconnect lever is easily operated by hand and the wiring
of the alternated disconnect and fuse circuits is easier.

Ordering details
Description Color Type Order code Pkg Weight
3 Disconnect Profile aligned with ZS4-SF Grey, orange ZS4-S-R2 1SNK506414R0000 qty (1 pce) g
1SNK161033F0014 Main technical data Mounting instructions
50
21.6
TH 35-7.5,
Rail
Connecting capacity
IEC
UL - CSA
TH 35-15
1 conductor Rigid - Solid / Stranded 0.2 ... 4 mm² 24 ... 10 AWG Wire stripping 10.5 mm
per clamp Flexible 0.22 ... 4 mm² length 0.412 in
with non insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
ZS4-S-R2 with insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
Gauge A3-B3
2 conductors Rigid - Solid / Stranded 0.2 ... 1.5 mm² 24 ... 16 AWG Tool Flat screwdriver
per clamp Flexible 0.2 ... 1.5 mm² Ø 3.5 mm
with twin ferrule 0.22 ... 1.5 mm² 24 ... 16 AWG Ø 0.138 in
70.3 2.77"
Rated current / Rated cross section 18 A / 2.5 mm² 13 A / 10 AWG
Maximum current / Maximum cross section 18 A / 4 mm²
Rated short-time withstand current (1s) 300 A Torque 0.6 Nm ± 0.1
5.31 lb.in ± 0.885
86.3 3.40" 78.8 3.10" Rated voltage 400 V 150 V
Impulse withstand voltage
6000 V
Protection IP20 NEMA 1
Recommendation for best usage: in horizontal assemblies, disconnect terminal blocks should be mounted
26.7 1.05" with fixed foot on top (power side) so that the disconnect lever does not partially close through gravity.
Furthermore, as specified per IEC 60947-7-1, disconnect terminal blocks are intended to be used for temporary
6 mm 0.236 in spacing disconnection at zero potential and at no load.
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.ABB.com
CE CB RoHS USR CNR CSA EAC BV DNV Rina

Accessories
Description Color Type Order code Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 Jumper bars 2 poles 41 A (IEC) Orange JB6-2 1SNK906302R0000 50 1.30
3 poles 41 A (IEC) JB6-3 1SNK906303R0000 50 2.10
3 4 4 poles 41 A (IEC) JB6-4 1SNK906304R0000 50 2.90
5 poles 41 A (IEC) JB6-5 1SNK906305R0000 50 3.60
10 poles 41 A (IEC) JB6-10 1SNK906310R0000 20 7.40
3 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
5 6
4 Test connectors End module, 5.2 mm 0.205 in Dark grey TC5-R1 1SNK900201R0000 10 5.20
5 Spacers 0.8 mm 0.031 in Dark grey ES-TC6 1SNK900105R0000 10 0.80
6 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC612 1SNK150000R0000 22 10.00
MC612PA 1SNK159999R0000 20 11.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Fuse screw clamp terminal blocks
Description Color Type Order code Pkg Weight 1SNK161043S0201
qty (1 pce) g
Fuse Grey, dark grey ZS4-SF 1SNK506410R0000 50 18.60
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
128 | ABB SNK series - Terminal blocks
