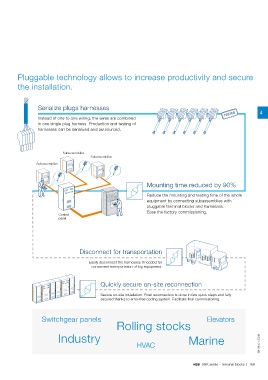

Pluggable technology allows to increase productivity and secure
the installation.
Serialize plugs harnesses
TESTED 4
Instead of one to one wiring, the wires are combined
in one single plug harness. Production and testing of
harnesses can be serialized and outsourced.
Subassemblies
Subassemblies
Subassemblies
Mounting time reduced by 90%
Reduce the mounting and testing time of the whole
equipment by connecting subassemblies with
pluggable terminal blocks and harnesses.
Ease the factory commissioning.
Control
panel
Disconnect for transportation
Easily disconnect the harnesses if needed for
convenient transportation of big equipment.
Quickly secure on-site reconnection
Secure on-site installation: Final reconnection is done in few quick steps and fully
secured thanks to error-free coding system. Facilitate final commissioning.
Switchgear panels Elevators
Rolling stocks
Industry Marine
HVAC 1SNK164014S0201
