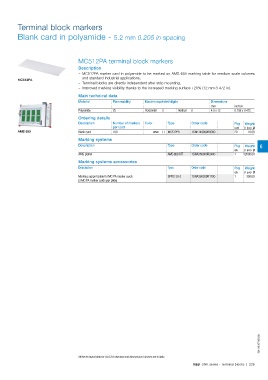

Page 229 - 1SNK160027C0207_SNK Series Terminal Blocks

Terminal block markers

Blank card in polyamide - 5.2 mm 0.205 in spacing

MC512PA terminal block markers
Description
– MC512PA marker card in polyamide to be marked on AMS 600 marking table for medium scale volumes
and standard industrial applications,
MC512PA
– Terminal blocks are directly independent after strip mounting,
– Improved marking visibility thanks to the increased marking surface +20% (12 mm 0.472 in).
Main technical data
Material Flammability Maximum printed digits Dimensions
mm inches
Polyamide V2 Horizontal 3 Vertical 8 4.8 x 12 0.189 x 0.472
Ordering details
Description Number of markers Color Type Order code Pkg Weight
per card card (1 pce) g
AMS 600 Blank card 100 White MC512PA 1SNK149999R0000 20 10.00
Marking systems
Description Type Order code Pkg Weight 6
qty (1 pce) g
AMS plotter AMS 600 KIT 1SNA360000R2400 1 12600.00
Marking systems accessories
Description Type Order code Pkg Weight
qty (1 pce) g
Marking support plate for MC PA marker cards SPRC 30-3 1SNA360039R1700 1 300.00
(3 MC PA marker cards per plate)

1SNK160076S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
ABB SNK series - Terminal blocks | 225
