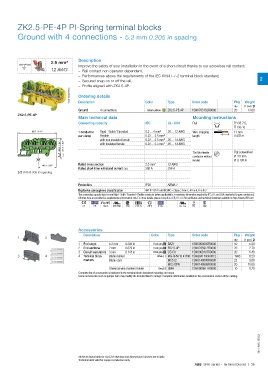

Page 39 - 1SNK160027C0207_SNK Series Terminal Blocks

ZK2.5-PE-4P PI-Spring terminal blocks

Ground with 4 connections - 5.2 mm 0.205 in spacing

2.5 mm² Description
Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact:
12 AWG – Rail contact non operator dependent,
– Performances above the requirements of the IEC 60947-7-2 terminal block standard,
– Secured snap on or off the rail, 2
– Profile aligned with ZK2.5-4P.
1SNK162032V0014 Ordering details

Description
Order code
Color
Pkg
Weight
Type
qty (1 pce) g
Ground 4 connections Green-yellow ZK2.5-PE-4P 1SNK705152R0000 20 13.60
ZK2.5-PE-4P
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
86.7 3.41" 1 conductor Rigid - Solid / Stranded 0.2 ... 4 mm² 26 ... 12 AWG Wire stripping 11 mm
per clamp Flexible 0.22 ... 2.5 mm² length 0.433 in
with non insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
49.2 1.94" 41.7 1.64" with insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
Tool (for flexible Flat screwdriver
conductor without Ø 3.5 mm
ferrule) Ø 0.138 in
Rated cross section 2.5 mm² 12 AWG
40.1 1.58"
Rated short-time withstand current (1s) 300 A 396 A
5.2 mm 0.205 in spacing
Protection IP20 NEMA 1
Explosive atmosphere classification IM2 II 2 GD Ex eb I/IIC/IIIC – Class I, Zone 1, AEx e II, Ex e II U
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.ABB.com

CE CB RoHS USR CNR CSA EAC Ex ATEX IECEx Haz Loc BV DNV

Accessories
Description Color Type Order code Pkg Weight
1 2
qty (1 pce) g
1 End stops 5.2 mm 0.205 in Dark grey BAZ1 1SNK900002R0000 50 5.30
2 End sections 2 mm 0.079 in Dark grey EK2.5-4P 1SNK705912R0000 20 2.70
3 Circuit separators 3 mm 0.118 in Dark grey CS-R3 1SNK900107R0000 20 6.40
3 4 4 Terminal block Blank marker White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
markers Blank card MC512 1SNK140000R0000 22 9.00
MC512PA 1SNK149999R0000 20 10.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

1SNK162041S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
