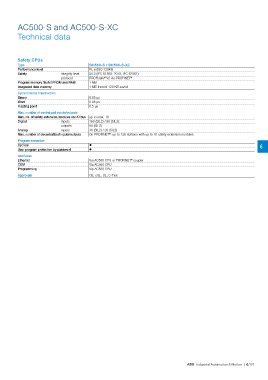

AC500-S and AC500-S-XC

Technical data

Safety CPUs
Type SM560-S / SM560-S-XC
Performance level PL e (ISO 13849)
Safety integrity level SIL3 (IEC 61508: 2010, IEC 62061)
protocol PROFIsafe V2 via PROFINET ®
®
Program memory fash EPROM and RAM 1 MB
Integrated data memory 1 MB thereof 120 KB saved
Cycle time for 1 instruction
Binary 0.05 µs
Word 0.06 µs
Floating point 0.5 µs
Max. number of centralized inputs/outputs
Max. nb. of safety extension modules on I/O bus up to max. 10
Digital inputs 160 (SIL2) / 80 (SIL3)
outputs 80 (SIL3)
Analog inputs 40 (SIL2) / 20 (SIL3)
®
Max. number of decentralized inputs/outputs On PROFINET : up to 128 stations with up to 10 safety extension modules
Program execution
Cyclical ? 6
User program protection by password ?
Interfaces
Ethernet Via AC500 CPU or PROFINET coupler
®
COM Via AC500 CPU
Programming Via AC500 CPU
Approvals CE, cUL, UL, C-Tick
