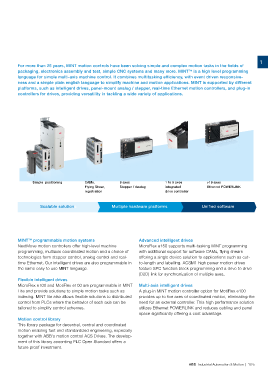

For more than 25 years, MINT motion controls have been solving simple and complex motion tasks in the fields of
packaging, electronics assembly and test, simple CNC systems and many more. MINT is a high level programming
TM
language for simple multi-axis machine control. It combines multitasking efficiency, with event driven responsive-
ness and a simple plain english language to simplify machine and motion applications. MINT is supported by different
platforms, such as intelligent drives, panel-mount analog / stepper, real-time Ethernet motion controllers, and plug-in
controllers for drives, providing versatility in tackling a wide variety of applications.

Simple positioning CAMs, 8 axes 1 to 5 axes >16 axes
Flying Shear, Stepper / Analog integrated Ethernet POWERLINK
registration drive controller

Scalable solutions Multiple hardware platforms Unified software
1- 5 axes intelligent
drives

MINT programmable motion systems Advanced intelligent drives
TM
NextMove motion controllers offer high-level machine MicroFlex e150 supports multi-tasking MINT programming
programming, multiaxis coordinated motion and a choice of with additional support for software CAMs, flying shears
technologies form stepper control, analog control and real- offering a single device solution to applications such as cut-
time Ethernet. Our intelligent drives are also programmable in to-length and labelling. ACSM1 high power motion drives
the same easy to use MINT language. feature SPC function block programming and a drive to drive
(D2D) link for synchronization of multiple axes,
Flexible intelligent drives
MicroFlex e100 and MotiFlex e100 are programmable in MINT Multi-axis intelligent drives
Lite and provide solutions to simple motion tasks such as A plug-in MINT motion controller option for MotiFlex e100
indexing. MINT lite also allows flexible solutions to distributed provides up to five axes of coordinated motion, eliminating the
control from PLCs where the behavior of each axis can be need for an external controller. This high performance solution
tailored to simplify control schemes. utilizes Ethernet POWERLINK and reduces cabling and panel
space significantly offering a cost advantage.
Motion control library
This library package for decentral, central and coordinated
motion enabling fast and standardized engineering, especially
together with ABB's motion control ACS Drives. The develop-
ment of this library according PLC Open Standard offers a
future proof investment.
