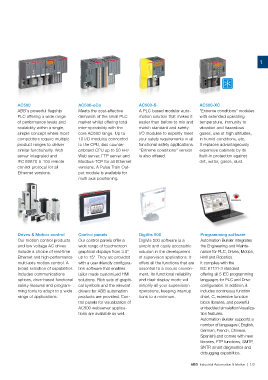

AC500 AC500-eCo AC500-S AC500-XC
ABB's powerful flagship Meets the cost-effective A PLC based modular auto- "Extreme conditions" modules
PLC offering a wide range demands of the small PLC mation solution that makes it with extended operating
of performance levels and market whilst offering total easier than before to mix and temperature, immunity to
scalability within a single, inter-operability with the match standard and safety vibration and hazardous
simple concept where most core AC500 range. Up to I/O modules to expertly meet gases, use at high altitudes,
competitors require multiple 10 I/O modules connected your safety requirements in all in humid conditions, etc.
product ranges to deliver to the CPU, fast counter functional safety applications. It replaces advantageously
similar functionality. Web onboard CPU up to 50 kHz. "Extreme conditions" version expensive cabinets by its
server integrated and Web server, FTP server and is also offered. built-in protection against
IEC 60870-5-104 remote Modbus-TCP for all Ethernet dirt, water, gases, dust.
control protocol for all versions. A Pulse Train Out-
Ethernet versions. put module is available for
multi axis positioning.













Drives & Motion control Control panels DigiVis 500 Programming software
Our motion control products Our control panels offer a DigiVis 500 software is a Automation Builder integrates
and low voltage AC drives wide range of touchscreen simple and easily accessible the Engineering and Mainte-
include a choice of real-time graphical displays from 3.5" solution in the development nance for PLC, Drives, Motion,
Ethernet and high-performance up to 15". They are provided of supervision applications. It HMI and Robotics.
multi-axis motion control. A with a user friendly confgura- offers all the functions that are It complies with the
broad selection of capabilities tion software that enables essential to a secure environ- IECĀ 61131-3 standard
includes communications tailor made customized HMI ment, its functional reliability offering all 5 IEC programming
options, drive-based functional solutions. Rich sets of graphi- and dual-display mode will languages for PLC and Drive
safety features and program- cal symbols and the relevant simplify all your supervision confguration. In addition, it
ming tools to adapt to a wide drivers for ABB automation operations, keeping interrup- includes continuous function
range of applications. products are provided. Con- tions to a minimum. chart, C, extensive function
trol panels for visualization of block libraries, and powerful
AC500 webserver applica- embedded simulation/visualiza-
tions are available as well. tion features.
Automation Builder supports a
number of languages ( English,
German, French, Chinese,
Spanish) and comes with new
libraries, FTP functions, SMTP,
SNTP, smart diagnostics and
debugging capabilities.

ABB Industrial Automation & Motion | 1/3
