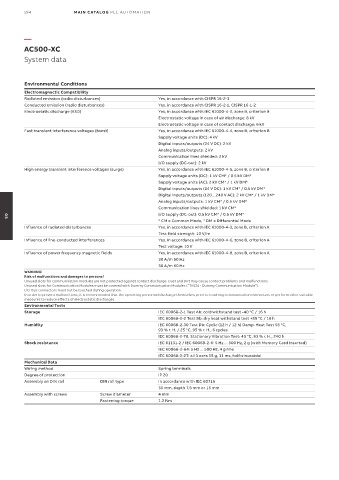

194 MAIN CATALOG PLC AUTOMATION

—
AC500-XC
System data

Environmental Conditions
Electromagnectic Compatibility
Radiated emission (radio disturbances) Yes, in accordance with CISPR 16-2-3
Conducted emission (radio disturbances) Yes, in accordance with CISPR 16-2-1, CISPR 16-1-2
Electrostatic discharge (ESD) Yes, in accordance with IEC 61000-4-2, zone B, criterion B
Electrostatic voltage in case of air discharge: 8 kV
Electrostatic voltage in case of contact discharge: 6 kV
Fast transient interference voltages (burst) Yes, in accordance with IEC 61000-4-4, zone B, criterion B
Supply voltage units (DC): 4 kV
Digital inputs/outputs (24 V DC): 2 kV
Analog inputs/outputs: 2 kV
Communication lines shielded: 2 kV
I/O supply (DC-out): 2 kV
High energy transient interference voltages (surge) Yes, in accordance with IEC 61000-4-5, zone B, criterion B
Supply voltage units (DC): 1 kV CM* / 0.5 kV DM*
Supply voltage units (AC): 2 kV CM* / 1 kV DM*
Digital inputs/outputs (24 V DC): 1 kV CM* / 0.5 kV DM*
Digital inputs/outputs (120…240 V AC): 2 kV CM* / 1 kV DM*
Analog inputs/outputs: 1 kV CM* / 0.5 kV DM*
Communication lines shielded: 1 kV CM*
I/O supply (DC-out): 0,5 kV CM* / 0.5 kV DM*
* CM = Common Mode, * DM = Differential Mode
05
Influence of radiated disturbances Yes, in accordance with IEC 61000-4-3, zone B, criterion A
Test field strength: 10 V/m
Influence of line-conducted interferences Yes, in accordance with IEC 61000-4-6, zone B, criterion A
Test voltage: 10 V
Influence of power frequency magnetic fields Yes, in accordance with IEC 61000-4-8, zone B, criterion A
30 A/m 50 Hz
30 A/m 60 Hz
WARNING!
Risk of malfunctions and damages to persons!
Unused slots for communication modules are not protected against contact discharge. Dust and Dirt may cause contact problems and malfunctions.
Unused slots for Communication Modules must be covered with Dummy Communication Modules (“TA524 - Dummy Communication Module”).
I/O-Bus connectors must not be touched during operation.
In order to prevent malfunctions, it is recommended that the operating personnel discharge themselves prior to touching communication connectors or perform other suitable
measures to reduce effects of electrostatic discharges.
Environmental Tests
Storage IEC 60068-2-1 Test Ab: cold withstand test -40 °C / 16 h
IEC 60068-2-2 Test Bb: dry heat withstand test +85 °C / 16 h
Humidity IEC 60068-2-30 Test Db: Cyclic (12 h / 12 h) Damp-Heat Test 55 °C,
93 % r. H. / 25 °C, 95 % r. H., 6 cycles
IEC 60068-2-78, Stationary Vibration Test: 40 °C, 93 % r. H., 240 h
Shock resistance IEC 61131-2 / IEC 60068-2-6: 5 Hz ... 500 Hz, 2 g (with Memory Card inserted)
IEC 60068-2-64: 5 Hz ... 500 Hz, 4 g rms
IEC 60068-2-27: all 3 axes 15 g, 11 ms, half-sinusoidal
Mechanical Data
Wiring method Spring terminals
Degree of protection IP 20
Assembly on DIN rail DIN rail type In accordance with IEC 60715
35 mm, depth 7.5 mm or 15 mm
Assembly with screws Screw diameter 4 mm
Fastening torque 1.2 Nm
