PLC AUTOMATION PRODUCT FAMILY 35
01
—

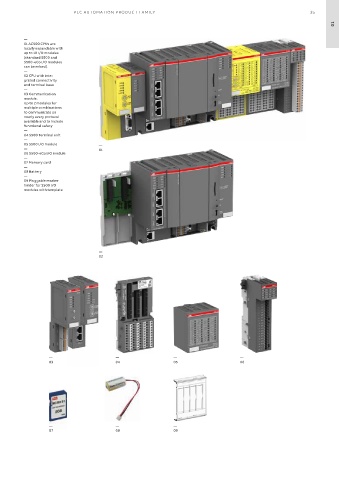

01 AC500 CPUs are
locally expandable with
up to 10 I/O modules
(standard S500 and
S500-eCo I/O modules
can be mixed).
—
02 CPU with inte-
grated connectivity
and terminal base
—
03 Communication
module.
Up to 2 modules for
multiple combinations
to communicate on
nearly every protocol
available and to include
functional safety
—
04 S500 Terminal unit
—
05 S500 I/O module —
— 01
06 S500-eCo I/O module
—
07 Memory card
—
08 Battery
—
09 Pluggable marker
holder for S500 I/O
modules with template
—
