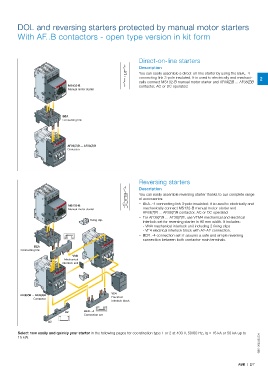

DOL and reversing starters protected by manual motor starters

With AF..B contactors - open type version in kit form

Direct-on-line starters
Description
You can easily assemble a direct-on-line starter by using the BEA..-4
connecting link 3-pole insulated. It is used to electrically and mechani- 2
I >
cally connect MS132-B manual motor starter and AF09(Z)B ... AF38(Z)B
MS132-B contactor, AC or DC operated.
Manual motor starter

BEA
Connecting link

AF09(Z)B ... AF38(Z)B
Contactor

Reversing starters

Description
You can easily assemble reversing starter thanks to our complete range
of accessories:
I >
– BEA..-4 connecting link 3-pole insulated: it is used to electrically and
MS132-B
Manual motor starter mechanically connect MS132-B manual motor starter and
AF09(Z)B ... AF38(Z)B contactor, AC or DC operated
– For AF09(Z)B ... AF38(Z)B, use VEM4 mechanical and electrical
Fixing clip interlock set for reversing starter in 90 mm width. It includes:
- VM4 mechanical interlock unit including 2 fixing clips
- VE4 electrical interlock block with A2-A2 connection.
– BER..-4 connection set: it assures a safe and simple reversing
connection between both contactor main terminals.
BEA
Connecting link
VM4
Mechanical
interlock unit

VE4
AF09(Z)B ... AF38(Z)B Electrical
Contactor
interlock block
A2 BER..-4
Connection set
A2

Select now easily and quickly your starter in the following pages for coordination type 1 or 2 at 400 V, 50/60 Hz, Iq = 16 kA or 50 kA up to
1SBC100248S0201
15 kW.
