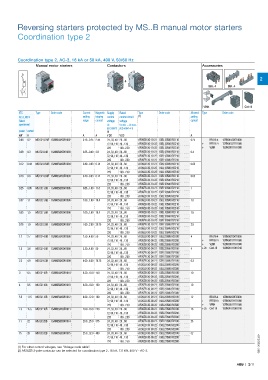

Reversing starters protected by MS..B manual motor starters

Coordination type 2

Coordination type 2, AC-3, 16 kA or 50 kA, 400 V, 50/60 Hz
Manual motor starters Contactors Accessories

+ 2
I >
BEA..-4 BER..-4

VEM4 CA4-10
IEC Type Order code Current Magnetic Supply Rated Type Order code Allowed Type Order code
AC-3, 400 V setting tripping control control circuit (2) setting
Rated range current voltage voltage current
operational Uc Uc min. … Uc max.
(IEC 60077) (IEC 60947-4-1)
power current (1)
kW A A A V DC V DC A
0.06 0.2 MS132-0.25B 1SAM350200R1002 0.16...0.25 2.44 24, 33, 48 20...60 AF09ZB-30-10-21 1SBL136061R2110 0.25 BEA16-4 1SBN081306T1000
72, 96, 110 48...130 AF09ZB-30-10-22 1SBL136061R2210 + BER16-4 1SBN081311R1000
220 100...250 AF09ZB-30-10-23 1SBL136061R2310 + VEM4 1SBN030111R1000
0.09 0.3 MS132-0.4B 1SAM350200R1003 0.25...0.40 3.9 24, 33, 48 20...60 AF09ZB-30-10-21 1SBL136061R2110 0.4
72, 96, 110 48...130 AF09ZB-30-10-22 1SBL136061R2210
220 100...250 AF09ZB-30-10-23 1SBL136061R2310
0.12 0.44 MS132-0.63B 1SAM350200R1004 0.40...0.63 6.14 24, 33, 48 20...60 AF09ZB-30-10-21 1SBL136061R2110 0.63
72, 96, 110 48...130 AF09ZB-30-10-22 1SBL136061R2210
220 100...250 AF09ZB-30-10-23 1SBL136061R2310
0.18 0.6 MS132-0.63B 1SAM350200R1004 0.40...0.63 6.14 24, 33, 48 20...60 AF09ZB-30-10-21 1SBL136061R2110 0.63
72, 96, 110 48...130 AF09ZB-30-10-22 1SBL136061R2210
220 100...250 AF09ZB-30-10-23 1SBL136061R2310
0.25 0.85 MS132-1.0B 1SAM350200R1005 0.63...1.00 11.5 24, 33, 48 20...60 AF09ZB-30-10-21 1SBL136061R2110 1
72, 96, 110 48...130 AF09ZB-30-10-22 1SBL136061R2210
220 100...250 AF09ZB-30-10-23 1SBL136061R2310
0.37 1.1 MS132-1.6B 1SAM350200R1006 1.00...1.60 18.4 24, 33, 48 20...60 AF09ZB-30-10-21 1SBL136061R2110 1.6
72, 96, 110 48...130 AF09ZB-30-10-22 1SBL136061R2210
220 100...250 AF09ZB-30-10-23 1SBL136061R2310
0.55 1.5 MS132-1.6B 1SAM350200R1006 1.00...1.60 18.4 24, 33, 48 20...60 AF09ZB-30-10-21 1SBL136061R2110 1.6
72, 96, 110 48...130 AF09ZB-30-10-22 1SBL136061R2210
220 100...250 AF09ZB-30-10-23 1SBL136061R2310
0.75 1.9 MS132-2.5B 1SAM350200R1007 1.60...2.50 28.75 24, 33, 48 20...60 AF09ZB-30-10-21 1SBL136061R2110 2.5
72, 96, 110 48...130 AF09ZB-30-10-22 1SBL136061R2210
220 100...250 AF09ZB-30-10-23 1SBL136061R2310
1.1 2.7 MS132-4.0B 1SAM350200R1008 2.50...4.00 50 24, 33, 48 20...60 AF26ZB-30-00-21 1SBL236061R2100 4 BEA26-4 1SBN082306T1000
72, 96, 110 48...130 AF26ZB-30-00-22 1SBL236061R2200 + BER38-4 1SBN082311R1000
220 100...250 AF26ZB-30-00-23 1SBL236061R2300 + VEM4 1SBN030111R1000
1.5 3.6 MS132-4.0B 1SAM350200R1008 2.50...4.00 50 24, 33, 48 20...60 AF26ZB-30-00-21 1SBL236061R2100 4 + 2x CA4-10 1SBN010110R1010
72, 96, 110 48...130 AF26ZB-30-00-22 1SBL236061R2200
220 100...250 AF26ZB-30-00-23 1SBL236061R2300
2.2 4.9 MS132-6.3B 1SAM350200R1009 4.00...6.30 78.75 24, 33, 48 20...60 AF26ZB-30-00-21 1SBL236061R2100 6.3
72, 96, 110 48...130 AF26ZB-30-00-22 1SBL236061R2200
220 100...250 AF26ZB-30-00-23 1SBL236061R2300
3 6.5 MS132-10B 1SAM350200R1010 6.30...10.0 150 24, 33, 48 20...60 AF26ZB-30-00-21 1SBL236061R2100 10
72, 96, 110 48...130 AF26ZB-30-00-22 1SBL236061R2200
220 100...250 AF26ZB-30-00-23 1SBL236061R2300
4 8.5 MS132-10B 1SAM350200R1010 6.30...10.0 150 24, 33, 48 20...60 AF26ZB-30-00-21 1SBL236061R2100 10
72, 96, 110 48...130 AF26ZB-30-00-22 1SBL236061R2200
220 100...250 AF26ZB-30-00-23 1SBL236061R2300
5.5 11.5 MS132-12B 1SAM350200R1012 8.00...12.0 180 24, 33, 48 20...60 AF26ZB-30-00-21 1SBL236061R2100 12 BEA38-4 1SBN082306T2000
72, 96, 110 48...130 AF26ZB-30-00-22 1SBL236061R2200 + BER38-4 1SBN082311R1000
220 100...250 AF26ZB-30-00-23 1SBL236061R2300 + VEM4 1SBN030111R1000
7.5 15.5 MS132-16B 1SAM350200R1011 10.0...16.0 240 24, 33, 48 20...60 AF30ZB-30-00-21 1SBL276061R2100 16 + 2x CA4-10 1SBN010110R1010
72, 96, 110 48...130 AF30ZB-30-00-22 1SBL276061R2200
220 100...250 AF30ZB-30-00-23 1SBL276061R2300
11 22 MS132-25B 1SAM350200R1014 20.0...25.0 375 24, 33, 48 20...60 AF30ZB-30-00-21 1SBL276061R2100 25
72, 96, 110 48...130 AF30ZB-30-00-22 1SBL276061R2200
220 100...250 AF30ZB-30-00-23 1SBL276061R2300
15 29 MS132-32B 1SAM350200R1015 25.0...32.0 480 24, 33, 48 20...60 AF30ZB-30-00-21 1SBL276061R2100 32
72, 96, 110 48...130 AF30ZB-30-00-22 1SBL276061R2200
220 100...250 AF30ZB-30-00-23 1SBL276061R2300
(1) For other control voltages, see "Voltage code table". 1SBC100252S0201
(2) AF26ZB 3-pole contactor can be selected for coordination type 2, 16 kA, 7.5 kW, 400 V - AC-3.

ABB | 2/11
