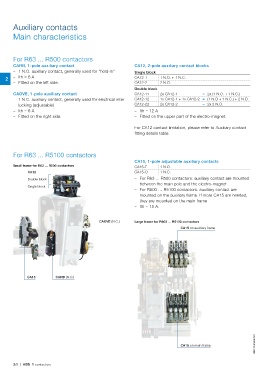

Page 18 - 1SBC104119C0202_MainCatalog_R contactors

Auxiliary contacts
Main characteristics

For R63 ... R500 contactors

CARB, 1-pole auxiliary contact CA12, 2-pole auxiliary contact blocks

–– 1 N.O. auxiliary contact, generally used for "hold-in" Single block
CA12-1
2 –– Ith = 6 A CA12-2 1 N.O. + 1 N.C.
–– Fitted on the left side. 2 N.O.

Double block

CAOVE, 1-pole auxiliary contact CA12-11 2x CA12-1 = 2x (1 N.O. + 1 N.C.)
–– 1 N.C. auxiliary contact, generally used for electrical inter-
CA12-12 1x CA12-1 + 1x CA12-2 = (1 N.O + 1 N.C.) + 2 N.O.
locking (adjustable)
–– Ith = 6 A CA12-22 2x CA12-2 = 2x 2 N.O.
–– Fitted on the right side.
–– Ith = 12 A
–– Fitted on the upper part of the electro-magnet.

For CA12 contact limitation, please refer to Auxiliary contact
fitting details table.

For R63 ... R5100 contactors CA15, 1-pole adjustable auxiliary contacts

Small frame for R63 ... R500 contactors CA15-F 1 N.O.
CA12
Double block CA15-O 1 N.C.
Single block
–– For R63 ... R500 contactors: auxiliary contact are mounted
CAOVE (N.C.) between the main pole and the electro-magnet

–– For R800 … R5100 contactors: auxiliary contact are
mounted on the auxiliary frame. If more CA15 are needed,
they are mounted on the main frame

–– Ith = 15 A.

Large frame for R800 ... R5100 contactors
CA15 on auxiliary frame

CA15 CARB (N.O.)

CA15 on main frame 1SBC104085S0201
