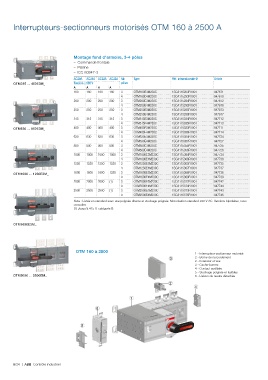

Interrupteurs-sectionneurs motorisés OTM 160 à 2500 A

Montage fond d'armoire, 3-4 pôles
– Commande frontale
– Platine
– IEC 60947-3
AC20A AC21A AC22A AC23A Nb Type Réf. internationale @ Article
OTM315 ... 400E3M_ Tension ≤ 500 V pôles
A A A A
160 160 160 160 3 OTM160E3M230C 1SCA115283R1001 947671
4 OTM160E4M230C 1SCA115293R1001 947679
200 200 200 200 3 OTM200E3M230C 1SCA115284R1001 947672
4 OTM200E4M230C 1SCA115292R1001 947678
250 250 250 250 3 OTM250E3M230C 1SCA115285R1001 947673
4 OTM250E4M230C 1SCA115290R1001 947677
315 315 315 315 3 OTM315E3M230C 1SCA115334R1001 947712
4 OTM315E4M230C 1SCA115335R1001 947713
OTM630 ... 800E3M_ 400 400 400 400 3 OTM400E3M230C 1SCA115333R1001 947711
4 OTM400E4M230C 1SCA115336R1001 947714
630 630 630 630 3 OTM630E3M230C 1SCA115354R1001 947724
4 OTM630E4M230C 1SCA115357R1001 947727
800 800 800 800 3 OTM800E3M230C 1SCA115355R1001 947725
4 OTM800E4M230C 1SCA115356R1001 947726
1000 1000 1000 1000 3 OTM1000E3M230C 1SCA115364R1001 947734
4 OTM1000E4M230C 1SCA115368R1001 947738
1250 1250 1250 1250 3 OTM1250E3M230C 1SCA115365R1001 947735
4 OTM1250E4M230C 1SCA115367R1001 947737
OTM1000 ... 1250E3M_ 1600 1600 1600 1250 3 OTM1600E3M230C 1SCA115366R1001 947736
4 OTM1600E4M230C 1SCA115369R1001 947739
2000 2000 2000 (1) 3 OTM2000E3M230C 1SCA115372R1001 947742
4 OTM2000E4M230C 1SCA115374R1001 947744
2500 2500 2500 (1) 3 OTM2500E3M230C 1SCA115373R1001 947743
4 OTM2500E4M230C 1SCA115375R1001 947745
Note : Livrés en standard avec une poignée directe et stockage poignée. Motorisation standard 230 V AC. Versions bipolaires, nous
consulter.
(1) Jusqu'à 415 V, catégorie B.

OTM1600E3M_

OTM 160 à 2500
1 - Interrupteur-sectionneur motorisé
3 2 - Borne de raccordement
2 - Extension d'axe
3 - Cache-bornes
4 - Contact auxiliaire
5 - Stockage poignée et fusibles
OTM2000 ... 2500EM_ 6 - Liaison de neutre détachée
2
4

1

6

5

6/24 | ABB Contrôle industriel
