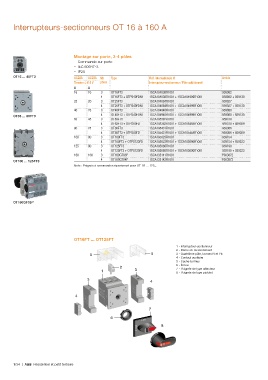

Page 40 - Catalogue Residentiel et petit Tertiaire
P. 40
Interrupteurs-sectionneurs OT 16 à 160 A
Montage sur porte, 3-4 pôles
– Commande sur porte
– IEC 60947-3
– IP20
OT16 ... 40FT3 AC22A AC23A Nb Type Réf. internationale @ Article
Tension ≤ 415 V pôles Interrupteur-sectionneur / Pôle additionnel
A A
16 16 3 OT16FT3 1SCA104838R1001 938982
4 OT16FT3 + OTPS40FDN1 1SCA104838R1001 + 1SCA104999R1001 938982 + 939130
25 20 3 OT25FT3 1SCA104884R1001 939027
4 OT25FT3 + OTPS40FDN1 1SCA104884R1001 + 1SCA104999R1001 939027 + 939130
40 23 3 OT40FT3 1SCA104940R1001 939080
OT63 ... 80FT3 4 OT40FT3 + OTPS40FDN1 1SCA104940R1001 + 1SCA104999R1001 939080 + 939130
63 45 3 OT63FT3 1SCA105382R1001 939318
4 OT63FT3 + OTPS80FD 1SCA105382R1001 + 1SCA105458R1001 939318 + 939389
80 75 3 OT80FT3 1SCA105431R1001 939366
4 OT80FT3 + OTPS80FD 1SCA105431R1001 + 1SCA105458R1001 939366 + 939389
100 80 3 OT100FT3 1SCA105023R1001 939154
4 OT100FT3 + OTPS125FD 1SCA105023R1001 + 1SCA105096R1001 939154 + 939223
125 90 3 OT125FT3 1SCA105060R1001 939190
4 OT125FT3 + OTPS125FD 1SCA105060R1001 + 1SCA105096R1001 939190 + 939223
160 160 3 OT160GT03P 1SCA135141R1001 F963872
4 OT160GT04P 1SCA135142R1001 F963873
OT100 ... 125FT3
Note : Poignée à commander séparément pour OT 16 ... 125_.
OT160GT03P
OT16FT ... OT125FT
1 - Interrupteur-sectionneur
2 - Borne de raccordement
5 5 3 - Quatrième pôle, bornes N et PE
4 - Contact auxiliaire
5 - Cache-bornes
6 - Écrou
2
1 3 7 - Poignée de type sélecteur
8 - Poignée de type pistolet
3 4
4
7
6
I ON
O OFF 8
O OFF NO II
1/34 | ABB Résidentiel et petit tertiaire
