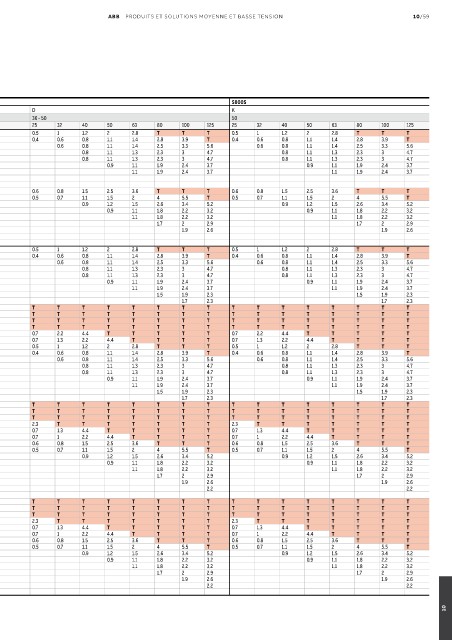

ABB PRODUITS ET SOLUTIONS MOYENNE ET BASSE TENSION 10/59

Amont S800N - S800S S800S
Courbe B C D K
Icu [kA] 36 - 50 36 - 50 50
Aval In [A] 25 32 40 50 63 80 100 125 25 32 40 50 63 80 100 125 25 32 40 50 63 80 100 125 25 32 40 50 63 80 100 125
S200L C 6 6 0.4 0.5 0.7 1 1.5 2.6 0.4 0.5 0.7 0.9 1.4 2.4 4.8 0.5 1 1.2 2 2.8 T T T 0.5 1 1.2 2 2.8 T T T
10 0.4 0.6 0.7 1 1.4 0.3 0.4 0.5 0.7 0.9 1.3 2 0.4 0.6 0.8 1.1 1.4 2.8 3.9 T 0.4 0.6 0.8 1.1 1.4 2.8 3.9 T
16 0.7 0.9 1.3 0.3 0.4 0.5 0.7 0.9 1.3 1.9 0.6 0.8 1.1 1.4 2.5 3.3 5.6 0.6 0.8 1.1 1.4 2.5 3.3 5.6
20 0.9 1.3 0.4 0.5 0.7 0.9 1.2 1.8 0.8 1.1 1.3 2.3 3 4.7 0.8 1.1 1.3 2.3 3 4.7
25 0.9 1.3 0.4 0.5 0.7 0.9 1.2 1.8 0.8 1.1 1.3 2.3 3 4.7 0.8 1.1 1.3 2.3 3 4.7
32 0.8 1.1 0.5 0.6 0.8 1 1.4 0.9 1.1 1.9 2.4 3.7 0.9 1.1 1.9 2.4 3.7
40 0.8 1.1 0.6 0.8 1 1.4 1.1 1.9 2.4 3.7 1.1 1.9 2.4 3.7
50
63
D 6 6 0.6 0.8 1.2 2 3.6 0.4 0.6 0.8 1.1 1.8 3.2 T 0.6 0.8 1.5 2.5 3.6 T T T 0.6 0.8 1.5 2.5 3.6 T T T
10 0.9 1.3 2 0.7 0.9 1.2 1.8 2.8 0.5 0.7 1.1 1.5 2 4 5.5 T 0.5 0.7 1.1 1.5 2 4 5.5 T
16 1.5 1 1.4 2 0.9 1.2 1.5 2.6 3.4 5.2 0.9 1.2 1.5 2.6 3.4 5.2
20 1 1.4 0.9 1.1 1.8 2.2 3.2 0.9 1.1 1.8 2.2 3.2
25 1.4 1.1 1.8 2.2 3.2 1.1 1.8 2.2 3.2
32 1.7 2 2.9 1.7 2 2.9
40 1.9 2.6 1.9 2.6
50
63
S200 B 10 6 0.4 0.5 0.7 1 1.5 2.6 0.4 0.5 0.7 0.9 1.4 2.4 4.8 0.5 1 1.2 2 2.8 T T T 0.5 1 1.2 2 2.8 T T T
10 0.4 0.6 0.7 1 1.4 0.3 0.4 0.5 0.7 0.9 1.3 2 0.4 0.6 0.8 1.1 1.4 2.8 3.9 T 0.4 0.6 0.8 1.1 1.4 2.8 3.9 T
16 0.7 0.9 1.3 0.3 0.4 0.5 0.7 0.9 1.3 1.9 0.6 0.8 1.1 1.4 2.5 3.3 5.6 0.6 0.8 1.1 1.4 2.5 3.3 5.6
20 0.9 1.3 0.4 0.5 0.7 0.9 1.2 1.8 0.8 1.1 1.3 2.3 3 4.7 0.8 1.1 1.3 2.3 3 4.7
25 0.9 1.3 0.4 0.5 0.7 0.9 1.2 1.8 0.8 1.1 1.3 2.3 3 4.7 0.8 1.1 1.3 2.3 3 4.7
32 0.8 1.1 0.5 0.6 0.8 1 1.4 0.9 1.1 1.9 2.4 3.7 0.9 1.1 1.9 2.4 3.7
40 0.8 1.1 0.6 0.8 1 1.4 1.1 1.9 2.4 3.7 1.1 1.9 2.4 3.7
50 1 0.7 0.9 1.3 1.5 1.9 2.3 1.5 1.9 2.3
63 0.9 0.9 1.2 1.7 2.3 1.7 2.3
C 10 0.5 T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T
1 3.3 T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T
1.6 0.6 1.3 T T T T T T 0.6 T T T T T T T T T T T T T T T T T T T T T T T
2 0.4 0.7 1.2 T T T T T 0.5 1 T T T T T T T T T T T T T T T T T T T T T T
3 0.4 0.6 0.7 1.1 2.6 T T 0.3 0.5 0.7 1.2 2.1 T T T 0.7 2.2 4.4 T T T T T 0.7 2.2 4.4 T T T T T
4 0.4 0.6 0.7 1 1.7 3.1 T 0.3 0.4 0.7 1 1.5 2.6 T T 0.7 1.3 2.2 4.4 T T T T 0.7 1.3 2.2 4.4 T T T T
6 0.4 0.5 0.7 1 1.5 2.6 0.4 0.5 0.7 0.9 1.4 2.4 4.8 0.5 1 1.2 2 2.8 T T T 0.5 1 1.2 2 2.8 T T T
10 0.4 0.6 0.7 1 1.4 0.3 0.4 0.5 0.7 0.9 1.3 2 0.4 0.6 0.8 1.1 1.4 2.8 3.9 T 0.4 0.6 0.8 1.1 1.4 2.8 3.9 T
16 0.7 0.9 1.3 0.3 0.4 0.5 0.7 0.9 1.3 1.9 0.6 0.8 1.1 1.4 2.5 3.3 5.6 0.6 0.8 1.1 1.4 2.5 3.3 5.6
20 0.9 1.3 0.4 0.5 0.7 0.9 1.2 1.8 0.8 1.1 1.3 2.3 3 4.7 0.8 1.1 1.3 2.3 3 4.7
25 0.9 1.3 0.4 0.5 0.7 0.9 1.2 1.8 0.8 1.1 1.3 2.3 3 4.7 0.8 1.1 1.3 2.3 3 4.7
32 0.8 1.1 0.5 0.6 0.8 1 1.4 0.9 1.1 1.9 2.4 3.7 0.9 1.1 1.9 2.4 3.7
40 0.8 1.1 0.6 0.8 1 1.4 1.1 1.9 2.4 3.7 1.1 1.9 2.4 3.7
50 1 0.7 0.9 1.3 1.5 1.9 2.3 1.5 1.9 2.3
63 0.9 0.9 1.2 1.7 2.3 1.7 2.3
D 10 0.5 T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T
1 0.8 5 T T T T T T 2.1 T T T T T T T T T T T T T T T T T T T T T T T
1.6 0.5 1 2.3 T T T T T 0.8 2.3 T T T T T T T T T T T T T T T T T T T T T T
2 0.3 0.5 0.7 2.3 T T T T 0.4 0.7 2.3 T T T T T 2.3 T T T T T T T 2.3 T T T T T T T
3 0.4 0.5 0.7 1.2 2.5 T T 0.3 0.5 0.7 1.2 2.2 T T T 0.7 1.3 4.4 T T T T T 0.7 1.3 4.4 T T T T T
4 0.4 0.4 0.7 1 1.7 3 T 0.3 0.4 0.7 1 1.4 2.6 T T 0.7 1 2.2 4.4 T T T T 0.7 1 2.2 4.4 T T T T
6 0.6 0.8 1.2 2 3.6 0.4 0.6 0.8 1.1 1.8 3.2 T 0.6 0.8 1.5 2.5 3.6 T T T 0.6 0.8 1.5 2.5 3.6 T T T
10 0.9 1.3 2 0.7 0.9 1.2 1.8 2.8 0.5 0.7 1.1 1.5 2 4 5.5 T 0.5 0.7 1.1 1.5 2 4 5.5 T
16 1.5 1 1.4 2 0.9 1.2 1.5 2.6 3.4 5.2 0.9 1.2 1.5 2.6 3.4 5.2
20 1 1.4 0.9 1.1 1.8 2.2 3.2 0.9 1.1 1.8 2.2 3.2
25 1.4 1.1 1.8 2.2 3.2 1.1 1.8 2.2 3.2
32 1.7 2 2.9 1.7 2 2.9
40 1.9 2.6 1.9 2.6
50 2.2 2.2
63
K 10 0.5 T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T
1 0.8 5 T T T T T T 2.1 T T T T T T T T T T T T T T T T T T T T T T T
1.6 0.5 1 2.3 T T T T T 0.8 2.3 T T T T T T T T T T T T T T T T T T T T T T
2 0.3 0.5 0.7 2.3 T T T T 0.4 0.7 2.3 T T T T T 2.3 T T T T T T T 2.3 T T T T T T T
3 0.4 0.5 0.7 1.2 2.5 T T 0.3 0.5 0.7 1.2 2.2 T T T 0.7 1.3 4.4 T T T T T 0.7 1.3 4.4 T T T T T
4 0.4 0.4 0.7 1 1.7 3 T 0.3 0.4 0.7 1 1.4 2.6 T T 0.7 1 2.2 4.4 T T T T 0.7 1 2.2 4.4 T T T T
6 0.6 0.8 1.2 2 3.6 0.4 0.6 0.8 1.1 1.8 3.2 T 0.6 0.8 1.5 2.5 3.6 T T T 0.6 0.8 1.5 2.5 3.6 T T T
10 0.9 1.3 2 0.7 0.9 1.2 1.8 2.8 0.5 0.7 1.1 1.5 2 4 5.5 T 0.5 0.7 1.1 1.5 2 4 5.5 T
16 1.5 1 1.4 2 0.9 1.2 1.5 2.6 3.4 5.2 0.9 1.2 1.5 2.6 3.4 5.2
20 1 1.4 0.9 1.1 1.8 2.2 3.2 0.9 1.1 1.8 2.2 3.2
25 1.4 1.1 1.8 2.2 3.2 1.1 1.8 2.2 3.2
32 1.7 2 2.9 1.7 2 2.9
40 1.9 2.6 1.9 2.6
50 2.2 2.2
63
La lettre T indique la sélectivité totale pour la combinaison retenue.
