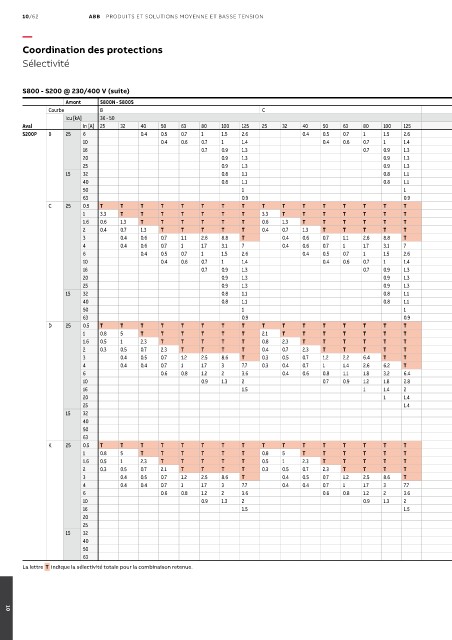

Page 1386 - Les indispensables 2021

10/62 ABB PRODUITS ET SOLUTIONS MOYENNE ET BASSE TENSION

—
Coordination des protections

Sélectivité

S800 - S200 @ 230/400 V (suite)
Amont S800N - S800S S800S
Courbe B C D K
Icu [kA] 36 - 50 36 - 50 50
Aval In [A] 25 32 40 50 63 80 100 125 25 32 40 50 63 80 100 125 25 32 40 50 63 80 100 125 25 32 40 50 63 80 100 125
S200P B 25 6 0.4 0.5 0.7 1 1.5 2.6 0.4 0.5 0.7 1 1.5 2.6 0.5 1 1.2 2 2.8 9.9 21.3 T 0.5 1 1.2 2 2.8 9.9 21.3 T
10 0.4 0.6 0.7 1 1.4 0.4 0.6 0.7 1 1.4 0.4 0.6 0.8 1.1 1.4 2.8 3.9 7.4 0.4 0.6 0.8 1.1 1.4 2.8 3.9 7.4
16 0.7 0.9 1.3 0.7 0.9 1.3 0.6 0.8 1.1 1.4 2.5 3.3 5.6 0.6 0.8 1.1 1.4 2.5 3.3 5.6
20 0.9 1.3 0.9 1.3 0.8 1.1 1.3 2.3 3 4.7 0.8 1.1 1.3 2.3 3 4.7
25 0.9 1.3 0.9 1.3 0.8 1.1 1.3 2.3 3 4.7 0.8 1.1 1.3 2.3 3 4.7
15 32 0.8 1.1 0.8 1.1 0.9 1.1 1.9 2.4 3.7 0.9 1.1 1.9 2.4 3.7
40 0.8 1.1 0.8 1.1 1.1 1.9 2.4 3.7 1.1 1.9 2.4 3.7
50 1 1 1.5 1.9 2.3 1.5 1.9 2.3
63 0.9 0.9 1.7 2.3 1.7 2.3
C 25 0.5 T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T
1 3.3 T T T T T T T 3.3 T T T T T T T T T T T T T T T T T T T T T T T
1.6 0.6 1.3 T T T T T T 0.6 1.3 T T T T T T T T T T T T T T T T T T T T T T
2 0.4 0.7 1.3 T T T T T 0.4 0.7 1.3 T T T T T T T T T T T T T T T T T T T T T
3 0.4 0.6 0.7 1.1 2.6 8.8 T 0.4 0.6 0.7 1.1 2.6 8.8 T 0.7 2.2 4.4 T T T T T 0.7 2.2 4.4 T T T T T
4 0.4 0.6 0.7 1 1.7 3.1 7 0.4 0.6 0.7 1 1.7 3.1 7 0.7 1.3 2.2 4.4 7.7 T T T 0.7 1.3 2.2 4.4 7.7 T T T
6 0.4 0.5 0.7 1 1.5 2.6 0.4 0.5 0.7 1 1.5 2.6 0.5 1 1.2 2 2.8 9.9 22 T 0.5 1 1.2 2 2.8 9.9 22 T
10 0.4 0.6 0.7 1 1.4 0.4 0.6 0.7 1 1.4 0.4 0.6 0.8 1.1 1.4 2.8 3.9 7.4 0.4 0.6 0.8 1.1 1.4 2.8 3.9 7.4
16 0.7 0.9 1.3 0.7 0.9 1.3 0.6 0.8 1.1 1.4 2.5 3.3 5.6 0.6 0.8 1.1 1.4 2.5 3.3 5.6
20 0.9 1.3 0.9 1.3 0.8 1.1 1.3 2.3 3 4.7 0.8 1.1 1.3 2.3 3 4.7
25 0.9 1.3 0.9 1.3 0.8 1.1 1.3 2.3 3 4.7 0.8 1.1 1.3 2.3 3 4.7
15 32 0.8 1.1 0.8 1.1 0.9 1.1 1.9 2.4 3.7 0.9 1.1 1.9 2.4 3.7
40 0.8 1.1 0.8 1.1 1.1 1.9 2.4 3.7 1.1 1.9 2.4 3.7
50 1 1 1.5 1.9 2.3 1.5 1.9 2.3
63 0.9 0.9 1.7 2.3 1.7 2.3
D 25 0.5 T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T
1 0.8 5 T T T T T T 2.1 T T T T T T T T T T T T T T T T T T T T T T T
1.6 0.5 1 2.3 T T T T T 0.8 2.3 T T T T T T T T T T T T T T T T T T T T T T
2 0.3 0.5 0.7 2.3 T T T T 0.4 0.7 2.3 T T T T T 2.3 T T T T T T T 2.3 T T T T T T T
3 0.4 0.5 0.7 1.2 2.5 8.6 T 0.3 0.5 0.7 1.2 2.2 6.4 T T 0.7 1.3 4.4 T T T T T 0.7 1.3 4.4 T T T T T
4 0.4 0.4 0.7 1 1.7 3 7.7 0.3 0.4 0.7 1 1.4 2.6 6.2 T 0.7 1 2.2 4.4 7.7 T T T 0.7 1 2.2 4.4 7.7 T T T
6 0.6 0.8 1.2 2 3.6 0.4 0.6 0.8 1.1 1.8 3.2 6.4 0.6 0.8 1.5 2.5 3.6 T T T 0.6 0.8 1.5 2.5 3.6 T T T
10 0.9 1.3 2 0.7 0.9 1.2 1.8 2.8 0.5 0.7 1.1 1.5 2 4 5.5 T 0.5 0.7 1.1 1.5 2 4 5.5 T
16 1.5 1 1.4 2 0.9 1.2 1.5 2.6 3.4 5.2 0.9 1.2 1.5 2.6 3.4 5.2
20 1 1.4 0.9 1.1 1.8 2.2 3.2 0.9 1.1 1.8 2.2 3.2
25 1.4 1.1 1.8 2.2 3.2 1.1 1.8 2.2 3.2
15 32 1.7 2 2.9 1.7 2 2.9
40 1.9 2.6 1.9 2.6
50 2.2 2.2
63
K 25 0.5 T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T
1 0.8 5 T T T T T T 0.8 5 T T T T T T T T T T T T T T T T T T T T T T
1.6 0.5 1 2.3 T T T T T 0.5 1 2.3 T T T T T T T T T T T T T T T T T T T T T
2 0.3 0.5 0.7 2.1 T T T T 0.3 0.5 0.7 2.3 T T T T 2.3 T T T T T T T 2.3 T T T T T T T
3 0.4 0.5 0.7 1.2 2.5 8.6 T 0.4 0.5 0.7 1.2 2.5 8.6 T 0.7 1.3 4.4 T T T T T 0.7 1.3 4.4 T T T T T
4 0.4 0.4 0.7 1 1.7 3 7.7 0.4 0.4 0.7 1 1.7 3 7.7 0.7 1 2.2 4.4 7.7 T T T 0.7 1 2.2 4.4 7.7 T T T
6 0.6 0.8 1.2 2 3.6 0.6 0.8 1.2 2 3.6 0.6 0.8 1.5 2.5 3.6 12 24.2 T 0.6 0.8 1.5 2.5 3.6 12 24.2 T
10 0.9 1.3 2 0.9 1.3 2 0.5 0.7 1.1 1.5 2 4 5.5 9.9 0.5 0.7 1.1 1.5 2 4 5.5 9.9
16 1.5 1.5 0.9 1.2 1.5 2.6 3.4 5.2 0.9 1.2 1.5 2.6 3.4 5.2
20 0.9 1.1 1.8 2.2 3.2 0.9 1.1 1.8 2.2 3.2
25 1.1 1.8 2.2 3.2 1.8 2.2 3.2
15 32 1.7 2 2.9 1.7 2 2.9
40 1.9 2.6 1.9 2.6
50 2.2 2.2
63
La lettre T indique la sélectivité totale pour la combinaison retenue.
