10/66 ABB PRODUITS ET SOLUTIONS MOYENNE ET BASSE TENSION

—

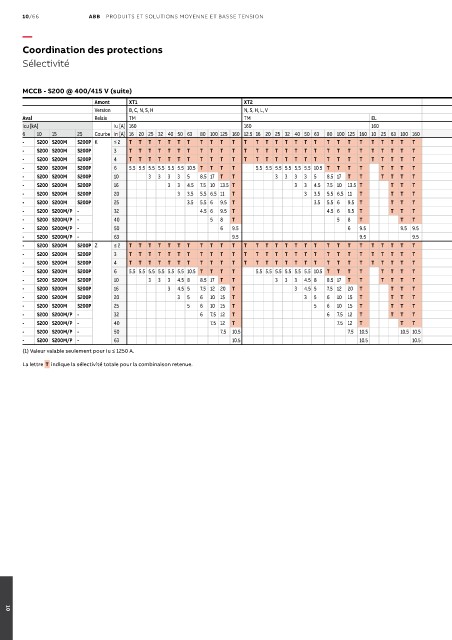

Coordination des protections

Sélectivité

MCCB - S200 @ 400/415 V (suite)
Amont XT1 XT2 XT3 XT4 T5 T6 T7
Version B, C, N, S, H N, S, H, L, V N, S N, S, H, L, V N, S, H, L, V N, S, H, L S, H, L, V (1)
Aval Relais TM TM EL TM TM EL TM - EL TM - EL EL
Icu [kA] Iu [A] 160 160 160 250 250 250 400 - 630 630 - 800 800 - 1600
6 10 15 25 Courbe In [A] 16 20 25 32 40 50 63 80 100 125 160 12.5 16 20 25 32 40 50 63 80 100 125 160 10 25 63 100 160 63 80 100 125 160 200 250 20 25 32 40 50 63 80 100 125 160 200 225 250 40 63 100 160 250 320 à 630 630 à 800 800 à 1600
- S200 S200M S200P K ≤ 2 T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T
- S200 S200M S200P 3 T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T
- S200 S200M S200P 4 T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T
- S200 S200M S200P 6 5.5 5.5 5.5 5.5 5.5 5.5 10.5 T T T T 5.5 5.5 5.5 5.5 5.5 5.5 10.5 T T T T T T T T 10.5 T T T T T T 7.5 7.5 7.5 7.5 7.5 8 T T T T T T T T T T T T T T T
- S200 S200M S200P 10 3 3 3 3 5 8.5 17 T T 3 3 3 3 5 8.5 17 T T T T T T 5 8.5 17 T T T T 5 5 5 7.5 9 T T T T T T T T T T T T T T
- S200 S200M S200P 16 3 3 4.5 7.5 10 13.5 T 3 3 4.5 7.5 10 13.5 T T T T 4.5 7.5 10 13.5 T T T 5 6 8 T T T T T T T T T T T T T T
- S200 S200M S200P 20 3 3.5 5.5 6.5 11 T 3 3.5 5.5 6.5 11 T T T T 3.5 5.5 6.5 11 T T T 5 6 6 T T T T T T T T T T T T T T
- S200 S200M S200P 25 3.5 5.5 6 9.5 T 3.5 5.5 6 9.5 T T T T 3.5 5.5 6 9.5 T T T T T T T T T T T T T T T T
- S200 S200M/P - 32 4.5 6 9.5 T 4.5 6 9.5 T T T T 4.5 6 9.5 T T T T T T T T T T T T T T T
- S200 S200M/P - 40 5 8 T 5 8 T T T 5 8 T T T T T T T T T T T T T
- S200 S200M/P - 50 6 9.5 6 9.5 9.5 9.5 6 9.5 T T T T T T T T T T T
- S200 S200M/P - 63 9.5 9.5 9.5 9.5 T T T T T T T T T T T
- S200 S200M S200P Z ≤ 2 T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T
- S200 S200M S200P 3 T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T
- S200 S200M S200P 4 T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T T
- S200 S200M S200P 6 5.5 5.5 5.5 5.5 5.5 5.5 10.5 T T T T 5.5 5.5 5.5 5.5 5.5 5.5 10.5 T T T T T T T T 10.5 T T T T T T 7.5 7.5 7.5 7.5 7.5 7.5 T T T T T T T T T T T T T T T
- S200 S200M S200P 10 3 3 3 4.5 8 8.5 17 T T 3 3 3 4.5 8 8.5 17 T T T T T T 8 8.5 17 T T T T 5 7.5 5 5 6.5 6.5 9 T T T T T T T T T T T T T T
- S200 S200M S200P 16 3 4.5 5 7.5 12 20 T 3 4.5 5 7.5 12 20 T T T T 5 7.5 12 20 T T T 4.5 5 6.5 6.5 8 T T T T T T T T T T T T T T
- S200 S200M S200P 20 3 5 6 10 15 T 3 5 6 10 15 T T T T 5 6 10 15 T T T 5 5 5 6.5 T T T T T T T T T T T T T T
- S200 S200M S200P 25 5 6 10 15 T 5 6 10 15 T T T T 5 6 10 15 T T T 5 5 6.5 T T T T T T T T T T T T T
- S200 S200M/P - 32 6 7.5 12 T 6 7.5 12 T T T T 6 7.5 12 T T T 5 5 6.5 T T T T T T T T T T T T T
- S200 S200M/P - 40 7.5 12 T 7.5 12 T T T 7.5 12 T T T 5 T T T T T T T T T T T T
- S200 S200M/P - 50 7.5 10.5 7.5 10.5 10.5 10.5 7.5 10.5 T T T T T T T T T T T T T T
- S200 S200M/P - 63 10.5 10.5 10.5 10.5 T T T T T T T T T T T T T
(1) Valeur valable seulement pour Iu ≤ 1250 A.
La lettre T indique la sélectivité totale pour la combinaison retenue.
