10/68 ABB PRODUITS ET SOLUTIONS MOYENNE ET BASSE TENSION

—

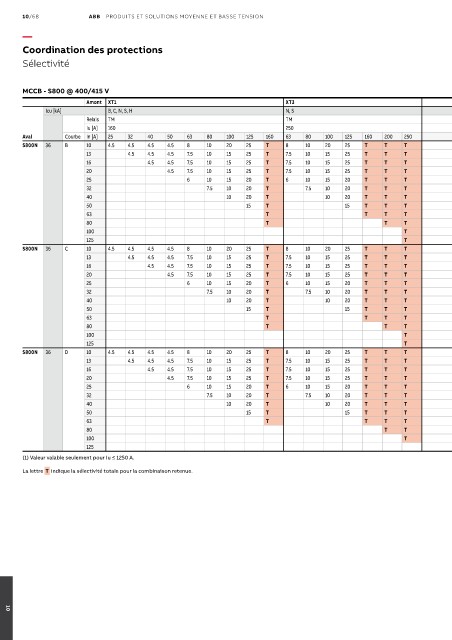

Coordination des protections

Sélectivité

MCCB - S800 @ 400/415 V
Amont XT1 XT3 XT4 T5 T6 T7
Icu [kA] B, C, N, S, H N, S N, S, H, L, V N, S, H, L, V N, S, H, L S, H, L, V (1)
Relais TM TM TM EL TM - EL TM - EL EL
Iu [A] 160 250 250 250 400 - 630 630 - 800 800 - 1600
Aval Courbe In [A] 25 32 40 50 63 80 100 125 160 63 80 100 125 160 200 250 20 25 32 40 50 63 80 100 125 160 200 225 250 40 63 100 160 250 320 à 630 630 à 800 800 à 1600
S800N 36 B 10 4.5 4.5 4.5 4.5 8 10 20 25 T 8 10 20 25 T T T 6.5 6.5 6.5 6.5 6.5 6.5 11 T T T T T T 6.5 6.5 T T T T T T
13 4.5 4.5 4.5 7.5 10 15 25 T 7.5 10 15 25 T T T 6.5 5 6.5 6.5 6.5 6.5 11 T T T T T T 6.5 6.5 T T T T T T
16 4.5 4.5 7.5 10 15 25 T 7.5 10 15 25 T T T 5 6.5 6.5 6.5 6.5 11 T T T T T T 6.5 6.5 T T T T T T
20 4.5 7.5 10 15 25 T 7.5 10 15 25 T T T 6.5 6.5 6.5 11 T T T T T T 6.5 6.5 T T T T T T
25 6 10 15 20 T 6 10 15 20 T T T 6.5 6.5 6.5 11 T T T T T T 6.5 6.5 T T T T T T
32 7.5 10 20 T 7.5 10 20 T T T 6.5 6.5 8 T T T T T T 6.5 6.5 T T T T T T
40 10 20 T 10 20 T T T 6.5 T T T T T T T T T T T T
50 15 T 15 T T T 7.5 T T T T T T T T T T T
63 T T T T 7 T T T T T T T T T T
80 T T T T T T T T T T T T
100 T T T T T T T T T
125 T T T T T
S800N 36 C 10 4.5 4.5 4.5 4.5 8 10 20 25 T 8 10 20 25 T T T 6.5 6.5 6.5 6.5 6.5 6.5 11 T T T T T T 6.5 6.5 T T T T T T
13 4.5 4.5 4.5 7.5 10 15 25 T 7.5 10 15 25 T T T 6.5 5 6.5 6.5 6.5 6.5 11 T T T T T T 6.5 6.5 T T T T T T
16 4.5 4.5 7.5 10 15 25 T 7.5 10 15 25 T T T 5 6.5 6.5 6.5 6.5 11 T T T T T T 6.5 6.5 T T T T T T
20 4.5 7.5 10 15 25 T 7.5 10 15 25 T T T 6.5 6.5 6.5 11 T T T T T T 6.5 6.5 T T T T T T
25 6 10 15 20 T 6 10 15 20 T T T 6.5 6.5 6.5 11 T T T T T T 6.5 6.5 T T T T T T
32 7.5 10 20 T 7.5 10 20 T T T 6.5 6.5 8 T T T T T T 6.5 6.5 T T T T T T
40 10 20 T 10 20 T T T 6.5 T T T T T T T T T T T T
50 15 T 15 T T T 7.5 T T T T T T T T T T T
63 T T T T 7 T T T T T T T T T T
80 T T T 6.5 T T T T T T T T
100 T 6.5 6.5 6.5 T T T T T
125 T T T T T
S800N 36 D 10 4.5 4.5 4.5 4.5 8 10 20 25 T 8 10 20 25 T T T 6.5 6.5 6.5 6.5 6.5 6.5 11 T T T T T T 6.5 6.5 T T T T T T
13 4.5 4.5 4.5 7.5 10 15 25 T 7.5 10 15 25 T T T 6.5 5 6.5 6.5 6.5 6.5 11 T T T T T T 6.5 6.5 T T T T T T
16 4.5 4.5 7.5 10 15 25 T 7.5 10 15 25 T T T 6.5 6.5 6.5 11 T T T T T T 6.5 6.5 T T T T T T
20 4.5 7.5 10 15 25 T 7.5 10 15 25 T T T 11 T T T T T T T T T T T T
25 6 10 15 20 T 6 10 15 20 T T T 11 T T T T T T T T T T T T
32 7.5 10 20 T 7.5 10 20 T T T T T T T T T T T T T T T
40 10 20 T 10 20 T T T T T T T T T T T T T T
50 15 T 15 T T T T T T T T T T T T T
63 T T T T T T T T T T T T T
80 T T T T T T T
100 T T T T T T
125 T T T T
(1) Valeur valable seulement pour Iu ≤ 1250 A.
La lettre T indique la sélectivité totale pour la combinaison retenue.
