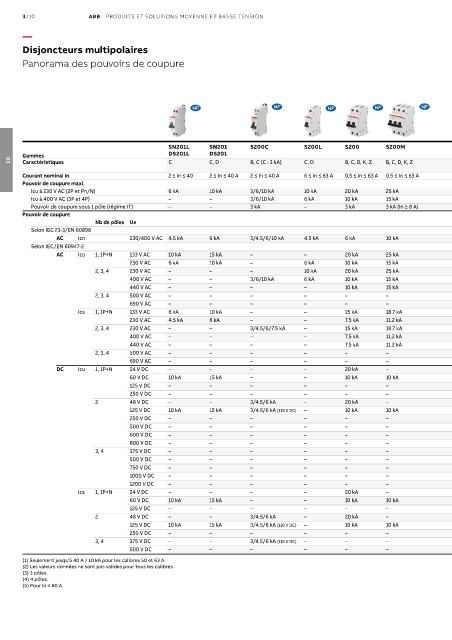

Page 208 - Les indispensables 2021

3/10 ABB PRODUITS ET SOLUTIONS MOYENNE ET BASSE TENSION

—
Disjoncteurs multipolaires

Panorama des pouvoirs de coupure

SN201L SN201 S200C S200L S200 S200M S200P M200 S800B S800C S800N S800S S800S-KM
Gammes DS201L DS201
Caractéristiques C C, D B, C (C : 3 kA) C, D B, C, D, K, Z B, C, D, K, Z B, C, D, K, Z B, C, D, K, Z B, C, D, K, Z Magnétique seul B, C, D, K B, C, D, K B, C, D B, C, D K Magnétique
03
seul
Courant nominal In 2 ≤ In ≤ 40 2 ≤ In ≤ 40 A 2 ≤ In ≤ 40 A 6 ≤ In ≤ 63 A 0.5 ≤ In ≤ 63 A 0.5 ≤ In ≤ 63 A 0.5 ≤ In ≤ 25 A 32 ≤ In ≤ 40 A 50 ≤ In ≤ 63 A 0.5 ≤ In ≤ 25 A 10 ≤ In ≤ 125 A 10 ≤ In ≤ 125 A 10 ≤ In ≤ 125 A 10 ≤ In ≤ 125 A 10 ≤ In ≤ 125 A 20 ≤ In ≤ 80 A
Pouvoir de coupure maxi.
Icu à 230 V AC (2P et Ph/N) 6 kA 10 kA 3/6/10 kA 10 kA 20 kA 25 kA 40 kA 25 kA 25 kA 25 kA 16 kA 25 kA 36 kA 50 kA 50 kA 50 kA
Icu à 400 V AC (3P et 4P) – – 3/6/10 kA 6 kA 10 kA 15 kA 25 kA 15 kA 15 kA 40 kA 16 kA 25 kA 36 kA 50 kA 50 kA 50 kA
Pouvoir de coupure sous 1 pôle (régime IT) – – 3 kA – 3 kA 3 kA (In ≥ 8 A) 4 kA (In ≥ 10 A) 3 kA (In ≥ 8 A) – – 4.5 kA 6 kA 6 kA –
Pouvoir de coupure
Nb de pôles Ue
Selon IEC 23-3/EN 60898
AC Icn 230/400 V AC 4.5 kA 6 kA 3/4.5/6/10 kA 4.5 kA 6 kA 10 kA 25 kA 15 kA 15 kA 25 kA – 15 kA 20 kA (5) 25 kA (5) – –
Selon IEC/EN 60947-2
AC Icu 1, 1P+N 133 V AC 10 kA 15 kA – – 20 kA 25 kA 40 kA 25 kA 25 kA 40 kA – – – – – –
230 V AC 6 kA 10 kA – 6 kA 10 kA 15 kA 25 kA 15 kA 15 kA 25 kA 16 kA 25 kA 36 kA 50 kA 50 kA 50 kA
2, 3, 4 230 V AC – – – 10 kA 20 kA 25 kA 40 kA 25 kA 25 kA 40 kA 16 kA 25 kA 36 kA 50 kA 50 kA 50 kA (3)
400 V AC – – 3/6/10 kA 6 kA 10 kA 15 kA 25 kA 15 kA 15 kA 25 kA 16 kA 25 kA 36 kA 50 kA 50 kA 50 kA (3)
440 V AC – – – – 10 kA 15 kA – – – – – – – – – –
2, 3, 4 500 V AC – – – – – – – – – – – – – 15 kA (2) 15 kA (2) –
690 V AC – – – – – – – – – – – – 4.5 kA 6 kA (2) 6 kA (2) –
Ics 1, 1P+N 133 V AC 6 kA 10 kA – – 15 kA 18.7 kA 20 kA 18.7 kA 18.7 kA 20 kA – – – – – –
230 V AC 4.5 kA 6 kA – – 7.5 kA 11.2 kA 12.5 kA 11.2 kA 7.5 kA 12.5 kA 10 kA 18 kA 30 kA 40 kA 40 kA 40 kA
2, 3, 4 230 V AC – – 3/4.5/6/7.5 kA – 15 kA 18.7 kA 20 kA 18.7 kA 18.7 kA 20 kA 10 kA 18 kA 30 kA 40 kA 40 kA 40 kA (3)
400 V AC – – – – 7.5 kA 11.2 kA 12.5 kA 11.2 kA 7.5 kA 12.5 kA 10 kA 18 kA 30 kA 40 kA 40 kA 40 kA (3)
440 V AC – – – – 7.5 kA 11.2 kA – – – – – – – – – –
2, 3, 4 500 V AC – – – – – – – – – – – – – 11 kA (2) 11 kA (2) –
690 V AC – – – – – – – – – – – – 3 kA 4 kA (2) 4 kA (2) –
DC Icu 1, 1P+N 24 V DC – – – – 20 kA – – – – – – – – – – –
60 V DC 10 kA 15 kA – – 10 kA 10 kA 15 kA 10 kA 10 kA 15 kA – – – – – –
125 V DC – – – – – – – – – – – 10 kA 20 kA 30 kA 30 kA –
250 V DC – – – – – – – – – – – – – – – –
2 48 V DC – – 3/4.5/6 kA – 20 kA – – – – – – – – – – –
125 V DC 10 kA 15 kA 3/4.5/6 kA (110 V DC) – 10 kA 10 kA 15 kA 10 kA 10 kA 15 kA – – – – – –
250 V DC – – – – – – – – – – – 10 kA 20 kA 30 kA 30 kA –
500 V DC – – – – – – – – – – – – – – – –
600 V DC – – – – – – – – – – – – – – – –
800 V DC – – – – – – – – – – – – – – – –
3, 4 375 V DC – – – – – – – – – – – 10 kA (3) 20 kA (3) 30 kA (3) 30 kA (3) 30 kA (3)
500 V DC – – – – – – – – – – – 10 kA (4) 20 kA (4) 30 kA (4) 30 kA (4) –
750 V DC – – – – – – – – – – – – – – – –
1000 V DC – – – – – – – – – – – – – – – –
1200 V DC – – – – – – – – – – – – – – – –
Ics 1, 1P+N 24 V DC – – – – 20 kA – – – – – – – – – – –
60 V DC 10 kA 15 kA – – 10 kA 10 kA 15 kA 10 kA 10 kA 15 kA – – – – – –
125 V DC – – – – – – – – – – – 10 kA 20 kA 30 kA 30 kA 30 kA
2 48 V DC – – 3/4.5/6 kA – 20 kA – – – – – – – – – – –
125 V DC 10 kA 15 kA 3/4.5/6 kA (110 V DC) – 10 kA 10 kA 15 kA 10 kA 10 kA 15 kA – – – – – –
250 V DC – – – – – – – – – – – 10 kA 20 kA 30 kA 30 kA 30 kA
3, 4 375 V DC – – 3/4.5/6 kA (110 V DC) – – – – – – – – 10 kA (3) 20 kA (3) 30 kA (3) 30 kA (3) 30 kA (3)
500 V DC – – – – – – – – – – – 10 kA (4) 20 kA (4) 30 kA (4) 30 kA (4) –
(1) Seulement jusqu'à 40 A / 10 kA pour les calibres 50 et 63 A.
(2) Les valeurs données ne sont pas valides pour tous les calibres.
(3) 3 pôles.
(4) 4 pôles.
(5) Pour In ≤ 80 A.
