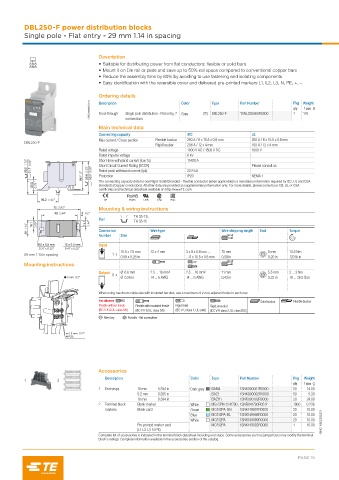

DBL250-F power distribution blocks
Single pole - Flat entry - 29 mm 1.14 in spacing

Description
• Suitable for distributing power from flat conductors: flexible or solid bars
• Mount it on Din rail or plate and save up to 50% rail space compared to conventional copper bars
• Reduce the assembly time by 80% by avoiding to use fastening and isolating components
• Easy identification with the reversible cover and delivered pre-printed markers L1, L2, L3, N, PE, +, –.
Ordering details
1SNC166052V0014 Description Single pole distribution - Flat entry, 7 Grey Type Part Number Pkg Weight
Color
1 pce g
qty
119
DBL250-F
1
1SNL325060R0000
Feed-through
connections
Main technical data
Connecting capacity IEC UL
Max current / Cross section Flexible busbar 250 A / 6 x 15.5 x 0.8 mm 250 A / 6 x 15.5 x 0.8 mm
DBL250-F
Rigid busbar 208 A / 12 x 4 mm 160 A / 12 x 4 mm
Rated voltage 1000 V AC / 1500 V DC 1000 V
Rated impulse voltage 8 kV
Short-time withstand current (Icw 1s)
11400 A
29.2 1.15" 21.7 0.85" Short Circuit Current Rating (SCCR) 22.8 kA Please consult us
Rated peak withstand current (Ipk)
50.7 2" 59.8 2.35" 52.3 2.06" Protection IP20 NEMA 1
20.2 0.79" The connecting capacity data for one Rigid: Solid/Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA
standards (Copper conductors). All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA
certificates and technical datasheet available on http://www.TE.com
36.3 1.43" CE RoHS USR CSA EAC
75 2.95" Mounting & wiring instructions
62 2.44" 5 0.2"
Rail TH 35-7.5,
TH 35-15
0.44"
11.1
29 1.14" 15.1 0.59" Connection Wire type Wire stripping length Tool Torque
Number Size
9.5 x 5.5 mm 12 x 5.5 mm Input
0.37 x 0.22" 0.47 x 0.22"
29 mm 1.14 in spacing 1 x 15.5 x 7.5 mm 12 x 4 mm 3 x 9 x 0.8 mm ... 15 mm 5 mm 13.5 Nm
0.59 x 0.28 in ... 6 x 15.5 x 0.8 mm 0.59 in 0.20 in 120 lb.in
Mounting instructions
Output Ø 6.6 mm 2.5 ... 16 mm² 2.5 ... 16 mm² 11 mm 5.5 mm 2 ... 3 Nm
5 mm 0.2" 6 x Ø 0.26 in 14 ... 6 AWG 14 ... 6 AWG 0.43 in 0.22 in 18 ... 26.5 lb.in
When using maximum cable size with insulated ferrules, use a maximum of 2 non-adjacent holes in each row.
Not allowed Solid busbar Flexible busbar
Flexible without ferrule Flexible with insulated ferrule Rigid Solid Rigid stranded
(IEC V-K & UL: class 5/6) (IEC V-K & UL: class 5/6) (IEC V-U class 1, UL solid) (IEC V-R class 2, UL class B/C)
Allen key Posidriv - flat screwdriver

5.5 mm 0.22"
PZ2

Accessories
1 2 Description Color Type Part Number Pkg Weight
qty 1 pce g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
10 mm 0.394 in BAZH1 1SNK900102R0000 20 24.00
2 Terminal block Blank marker White MG-CPM 13 41790 1SNB041790R0512 1960 0.236
markers Blank card Green MC512PA-GN 1SNK149997R0000 20 10.00
Blue MC512PA-BL 1SNK149998R0000 20 10.00
White MC512PA 1SNK149999R0000 20 10.00 1SNC166022S0201
Pre-printed marker card MC512PA 1SNK149002R0000 1 10.00
(L1-L2-L3-N-PE)
Complete list of accessories is indicated in the terminal block datasheet including end stops. Some accessories such as jumper bars may modify the terminal
block's ratings: Complete information available in the accessories section of the catalog.
