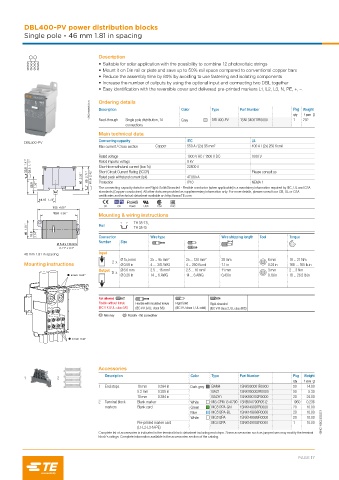

DBL400-PV power distribution blocks
Single pole - 46 mm 1.81 in spacing

Description
• Suitable for solar application with the possibility to combine 12 photovoltaic strings
• Mount it on Din rail or plate and save up to 50% rail space compared to conventional copper bars
• Reduce the assembly time by 80% by avoiding to use fastening and isolating components
• Increase the number of outputs by using the optional input and connecting two DBL together
• Easy identification with the reversible cover and delivered pre-printed markers L1, L2, L3, N, PE, +, –.

1SNC166053V0014 Ordering details Color Type Part Number Pkg Weight
Description
1 pce g
qty
Single pole distribution, 14
Feed-through
connections Grey DBL400-PV 1SNL340011R0000 1 202
Main technical data
DBL400-PV Connecting capacity IEC UL
Max current / Cross section Copper 550 A / (2x) 95 mm² 400 A / (2x) 250 Kcmil
Rated voltage 1000 V AC / 1500 V DC 1000 V
35.8 1.41" 28.3 1.11" Rated impulse voltage 8 kV Please consult us
Short-time withstand current (Icw 1s)
22800 A
Short Circuit Current Rating (SCCR)
60 2.36" 69 2.71" 61.5 2.42" Rated peak withstand current (Ipk) 47.88 kA
26.8 1.06" Protection IP10 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA
standards (Copper conductors). All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA
certificates and technical datasheet available on http://www.TE.com
44.18 1.74"
103 4.06" CE CB RoHS USR CSA EAC
92.8 3.65" Mounting & wiring instructions
TH 35-7.5,
Rail
46 1.81" 18.8 0.74" TH 35-15
Connection
Number Size Wire type Wire stripping length Tool Torque
Ø 5.4 x 7.6 mm
0.21" x 0.3"
46 mm 1.81 in spacing Input
Ø 15,5 mm 25 ... 95 mm² 25 ... 120 mm² 28 mm 6 mm 19 ... 21 Nm
Mounting instructions 2 x Ø 0.59 in 4 … 3/0 AWG 4 ... 250 Kcmil 1.1 in 0.24 in 168 … 185 lb.in
Output 12 x Ø 6.6 mm 2.5 ... 16 mm² 2.5 ... 16 mm² 11 mm 3 mm 2 ... 3 Nm
6 mm 0.24" Ø 0.26 in 14 ... 6 AWG 14 ... 6 AWG 0.43 in 0.19 in 18 ... 26.5 lb.in

Not allowed
Flexible without ferrule Flexible with insulated ferrule Rigid Solid Rigid stranded
(IEC V-K & UL: class 5/6) (IEC V-K & UL: class 5/6) (IEC V-U class 1, UL solid) (IEC V-R class 2, UL class B/C)
Allen key Posidriv - flat screwdriver

3 mm 0.12"

Accessories
1 2 Description Color Type Part Number Pkg Weight
qty 1 pce g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
10 mm 0.394 in BAZH1 1SNK900102R0000 20 24.00
2 Terminal block Blank marker White MG-CPM 13 41790 1SNB041790R0512 1960 0.236
markers Blank card Green MC512PA-GN 1SNK149997R0000 20 10.00
Blue MC512PA-BL 1SNK149998R0000 20 10.00
White MC512PA 1SNK149999R0000 20 10.00
Pre-printed marker card MC512PA 1SNK149002R0000 1 10.00 1SNC166024S0201
(L1-L2-L3-N-PE)
Complete list of accessories is indicated in the terminal block datasheet including end stops. Some accessories such as jumper bars may modify the terminal
block's ratings: Complete information available in the accessories section of the catalog.
