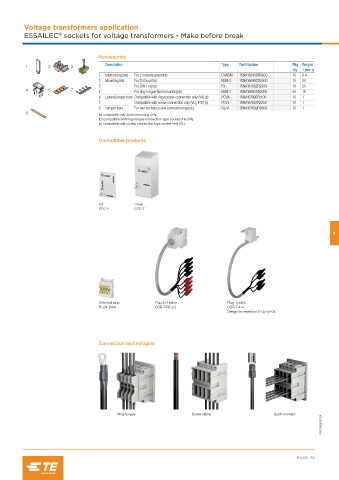

P. 37

Voltage transformers application
                      ®
          ESSAILEC  sockets for voltage transformers - Make before break


                                    Accessories
                                      Description                              Type  Part Number        Pkg Weight
          1       2       3
                                                                                                        qty  1 pce  g
                                    1  Interlocking peg  For 2 sockets assembly  CVABM  1SNA183436R0500  10  0.4
                                    2  Mounting kits  For TH35 rail (a)        KEM-3  1SNA166962R0000   10  24
                                    3           For DIN 1 rail (a)             FX    1SNA167682R2300    10  20
          4       6       7
                                    4           For ring-tongue flush mounting (b)  KEM-1  1SNA166928R2000  50  18
                                    6  Lateral jumper bars Compatible with ring-tongue connection only (VA) (b)  PCVA  1SNA167496R1100  10  1
                                    7           Compatible with screw connection only (VL); IP20 (c)  PCVL  1SNA167681R2200  10  1
                                    5  Jumper bars  For two sockets screw connection type (c)  BJ-VL  1SNA167680R0500  10  1
          5                         (a) compatible with base mounting only.
                                    (b) compatible with ring-tongue connection type socket only (VA).
                                    (c) compatible with screw connection type socket only (VL).

                                    Compatible products












                                    Lid         Cover
                                    CPC-1       CPC-7


                                                                                                                      4














                                    Universal plug     Plug 2x4 poles            Plug 4 poles
                                    FI-2/4-DIA4        COR-T-R5-2.2              COR-T-4-4
                                                                                 Design for insertion 01-02-03-04





                                    Connection technologies













                                          Ring-tongue               Screw clamp                  Quick-connect
                                                                                                                  1SNC169020S0201
