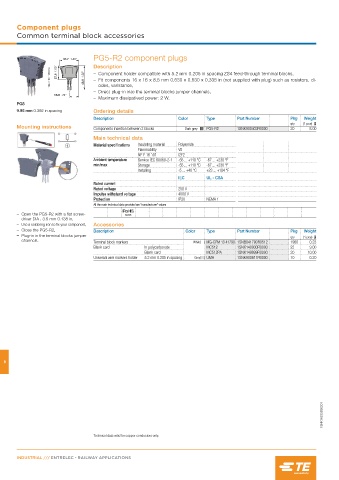

Page 1004 - Entrelec Terminal Blocks Master Catalog

Component plugs
Common terminal block accessories

37.7 1.48" PG5-R2 component plugs
Description
1SNK160112F0014 27.8 1.09" 48.9 1.92" – Component holder compatible with 5.2 mm 0.205 in spacing ZS4 feed-through terminal blocks,
– Fit components 16 x 16 x 8.5 mm 0.630 x 0.630 x 0.335 in (not supplied with plug) such as resistors, di-
odes, varistance,
– Direct plug-in into the terminal blocks jumper channels,
18.9 .74"
– Maximum dissipatived power: 2 W.
PG5
9.95 mm 0.392 in spacing Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Mounting instructions
Components insertion between 2 blocks Dark grey PG5-R2 1SNK900403R0000 20 8.00
Main technical data
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F2
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F
IEC UL - CSA
Rated current
Rated voltage 250 V
Impulse withstand voltage 4000 V
Protection IP20 NEMA 1
All the main technical data provided are "manufacturer" values
– Open the PG5-R2 with a flat screw- RoHS
driver DIA . 3.5 mm 0.138 in,
– Use a soldering iron to fix your component, Accessories
– Close the PG5-R2, Description Color Type Part Number Pkg Weight
– Plug-in in the terminal blocks jumper qty (1 pce) g
channels.
Terminal block markers White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
Blank card In polycarbonate MC512 1SNK140000R0000 22 9.00
Blank card MC512PA 1SNK149999R0000 20 10.00
Universal wire markers holder 5.2 mm 0.205 in spacing Grey UMH 1SNK900611R0000 10 0.20

9

1SNK160039S0201

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
