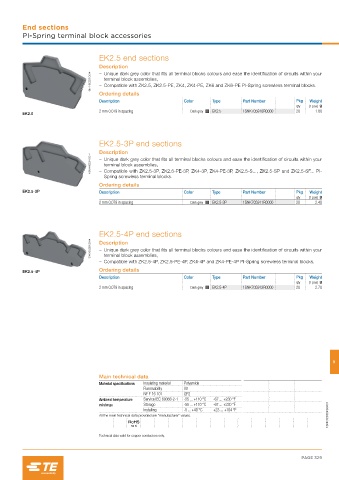

Page 1007 - Entrelec Terminal Blocks Master Catalog

End sections
PI-Spring terminal block accessories

EK2.5 end sections
Description
1SNK160233V0014 – Compatible with ZK2.5, ZK2.5-PE, ZK4, ZK4-PE, ZK6 and ZK6-PE PI-Spring screwless terminal blocks.
– Unique dark grey color that fits all terminal blocks colours and ease the identification of circuits within your
terminal block assemblies,
Ordering details
Description Color Type Part Number Pkg Weight
qty (1 pce) g
2 mm 0.079 in spacing Dark grey EK2.5 1SNK705910R0000 20 1.80
EK2.5

EK2.5-3P end sections
Description
1SNK160234V0014 – Unique dark grey color that fits all terminal blocks colours and ease the identification of circuits within your
terminal block assemblies,
– Compatible with ZK2.5-3P, ZK2.5-PE-3P, ZK4-3P, ZK4-PE-3P, ZK2.5-S..., ZK2.5-SP and ZK2.5-SF... PI-
Spring screwless terminal blocks.
Ordering details
EK2.5-3P Description Color Type Part Number Pkg Weight
qty (1 pce) g
2 mm 0.079 in spacing Dark grey EK2.5-3P 1SNK705911R0000 20 2.40

EK2.5-4P end sections
1SNK160235V0014 Description
– Unique dark grey color that fits all terminal blocks colours and ease the identification of circuits within your
terminal block assemblies,
– Compatible with ZK2.5-4P, ZK2.5-PE-4P, ZK4-4P and ZK4-PE-4P PI-Spring screwless terminal blocks.
Ordering details
EK2.5-4P
Description Color Type Part Number Pkg Weight
qty (1 pce) g
2 mm 0.079 in spacing Dark grey EK2.5-4P 1SNK705912R0000 20 2.70

9

Main technical data
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F2
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F
All the main technical data provided are "manufacturer" values. 1SNK160064S0201
RoHS

Technical data valid for copper conductors only.
