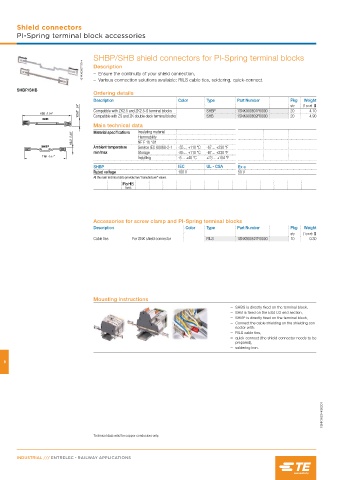

Shield connectors
PI-Spring terminal block accessories

SHBP/SHB shield connectors for PI-Spring terminal blocks
1SNK160267F0014 Description

– Ensure the continuity of your shield connection,
– Various connection solutions available: RILS cable ties, soldering, quick-connect.
SHBP/SHB
Ordering details
Description Color Type Part Number Pkg (1 pce) g
Weight
13.67 .54" Compatible with ZK2.5 and ZK2.5-S terminal blocks SHBP 1SNK900601R0000 qty 4.10
20
128 5.04" Compatible with ZS and ZK double deck terminal blocks SHB 1SNK900602R0000 20 4.90
SHB
Main technical data
12.2 0.48" Material specifications Insulating material
Flammability
NF F 16 101
SHBP Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
116 4.57"
Installing -5 ... +40 °C +23 ... +104 °F
SHBP IEC UL - CSA Ex e
Rated voltage 100 V 50 V
All the main technical data provided are "manufacturer" values
RoHS

Accessories for screw clamp and PI-Spring terminal blocks
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Cable ties For SNK shield connector RILS 1SNK900627R0000 10 0.30

Mounting instructions
– SHBS is directly fixed on the terminal block,
– SHB is fixed on the ES4-D2 end section,
– SHBP is directly fixed on the terminal block,
– Connect the cable shielding on the shielding con-
nector with:
– RILS cable ties,
– quick-connect (the shield connector needs to be
prepared),
– soldering iron.

9

1SNK160044S0201

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
