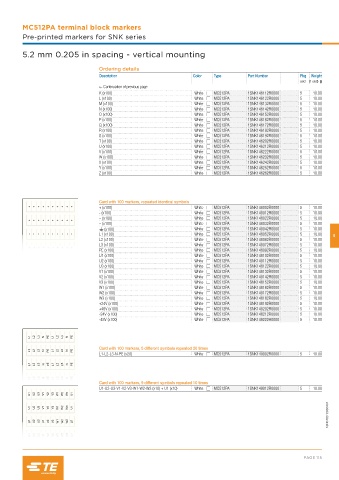

MC512PA terminal block markers
Pre-printed markers for SNK series

5.2 mm 0.205 in spacing - vertical mounting

Ordering details
Description Color Type Part Number Pkg Weight
card (1 card) g
← Continuation of previous page
K (x100) White MC512PA 1SNK146112R0000 5 10.00
L (x100) White MC512PA 1SNK146122R0000 5 10.00
M (x100) White MC512PA 1SNK146132R0000 5 10.00
N (x100) White MC512PA 1SNK146142R0000 5 10.00
O (x100) White MC512PA 1SNK146152R0000 5 10.00
P (x100) White MC512PA 1SNK146162R0000 5 10.00
Q (x100) White MC512PA 1SNK146172R0000 5 10.00
R (x100) White MC512PA 1SNK146182R0000 5 10.00
S (x100) White MC512PA 1SNK146192R0000 5 10.00
T (x100) White MC512PA 1SNK146202R0000 5 10.00
U (x100) White MC512PA 1SNK146212R0000 5 10.00
V (x100) White MC512PA 1SNK146222R0000 5 10.00
W (x100) White MC512PA 1SNK146232R0000 5 10.00
X (x100) White MC512PA 1SNK146242R0000 5 10.00
Y (x100) White MC512PA 1SNK146252R0000 5 10.00
Z (x100) White MC512PA 1SNK146262R0000 5 10.00

Card with 100 markers, repeated identical symbols
+ + + + + + + + + + + (x100) White MC512PA 1SNK148002R0000 5 10.00
- (x100) White MC512PA 1SNK148012R0000 5 10.00
~ (x100) White MC512PA 1SNK148022R0000 5 10.00
+ + + + + + + + + +
= (x100) White MC512PA 1SNK148032R0000 5 10.00
(x100) White MC512PA 1SNK148042R0000 5 10.00
+ + + + + + + + + + + + + + + + + + + + L1 (x100) White MC512PA 1SNK148052R0000 5 10.00 5
L2 (x100) White MC512PA 1SNK148062R0000 5 10.00
L3 (x100) White MC512PA 1SNK148072R0000 5 10.00
+ + + + + + + + + + + + + + + + + + + +
PE (x100) White MC512PA 1SNK148092R0000 5 10.00
U1 (x100) White MC512PA 1SNK148102R0000 5 10.00
U2 (x100) White MC512PA 1SNK148112R0000 5 10.00
U3 (x100) White MC512PA 1SNK148122R0000 5 10.00
V1 (x100) White MC512PA 1SNK148132R0000 5 10.00
V2 (x100) White MC512PA 1SNK148142R0000 5 10.00
V3 (x100) White MC512PA 1SNK148152R0000 5 10.00
W1 (x100) White MC512PA 1SNK148162R0000 5 10.00
W2 (x100) White MC512PA 1SNK148172R0000 5 10.00
W3 (x100) White MC512PA 1SNK148182R0000 5 10.00
+24V (x100) White MC512PA 1SNK148192R0000 5 10.00
+48V (x100) White MC512PA 1SNK148202R0000 5 10.00
-24V (x100) White MC512PA 1SNK148212R0000 5 10.00
-48V (x100) White MC512PA 1SNK148222R0000 5 10.00

L1 L2 L3 N PE L1 L2 L3 N PE
Card with 100 markers, 5 different symbols repeated 20 times
L1 L2 L3 N PE L1 L2 L3 N PE
L1-L2-L3-N-PE (x20) White MC512PA 1SNK149002R0000 5 10.00
L1 L L L2 L L L3 L L N N PE P P P L1 L L L2 L L L3 L L N N PE P P P
1 2 L2 L3 3 N N E E 1 L2 2 L3 3 N N E E
L L L L P P L L L L P P
Card with 100 markers, 9 different symbols repeated 10 times
U1-U2-U3-V1-V2-V3-W1-W2-W3 (x10) + U1 (x10) White MC512PA 1SNK149012R0000 5 10.00
U1 U2 U3 V1 V2 V3 W1 W2 W3 U1
1SNC160160S0201
U1 U2 U3 V1 V2 V3 W1 W2 W3 U1

U1 U U U U2 U U U U3 U U U V1 V V V V2 V V V V3 V V V W1 W W W W W2 W W W W W3 W W W W U1 U U U

1 2 2 3 3 1 2 3 3 1 2 3 1
U U U U U U V V V V V V W1 W W W2 W W W3 W W U U
