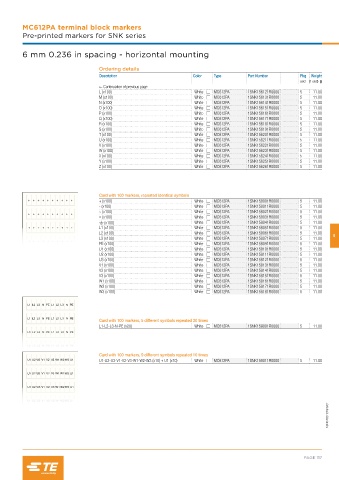

Page 1159 - Entrelec Terminal Blocks Master Catalog

MC612PA terminal block markers
Pre-printed markers for SNK series

6 mm 0.236 in spacing - horizontal mounting

Ordering details
Description Color Type Part Number Pkg Weight
card (1 card) g
← Continuation of previous page
L (x100) White MC612PA 1SNK156121R0000 5 11.00
M (x100) White MC612PA 1SNK156131R0000 5 11.00
N (x100) White MC612PA 1SNK156141R0000 5 11.00
O (x100) White MC612PA 1SNK156151R0000 5 11.00
P (x100) White MC612PA 1SNK156161R0000 5 11.00
Q (x100) White MC612PA 1SNK156171R0000 5 11.00
R (x100) White MC612PA 1SNK156181R0000 5 11.00
S (x100) White MC612PA 1SNK156191R0000 5 11.00
T (x100) White MC612PA 1SNK156201R0000 5 11.00
U (x100) White MC612PA 1SNK156211R0000 5 11.00
V (x100) White MC612PA 1SNK156221R0000 5 11.00
W (x100) White MC612PA 1SNK156231R0000 5 11.00
X (x100) White MC612PA 1SNK156241R0000 5 11.00
Y (x100) White MC612PA 1SNK156251R0000 5 11.00
Z (x100) White MC612PA 1SNK156261R0000 5 11.00

Card with 100 markers, repeated identical symbols
+ + + + + + + + + + + (x100) White MC612PA 1SNK158001R0000 5 11.00
- (x100) White MC612PA 1SNK158011R0000 5 11.00
~ (x100) White MC612PA 1SNK158021R0000 5 11.00
+ + + + + + + + + +
= (x100) White MC612PA 1SNK158031R0000 5 11.00
(x100) White MC612PA 1SNK158041R0000 5 11.00
+ + + + + + + + + + + + + + + + + + + + + + + + + + + + + + L1 (x100) White MC612PA 1SNK158051R0000 5 11.00
L2 (x100) White MC612PA 1SNK158061R0000 5 11.00
L3 (x100) White MC612PA 1SNK158071R0000 5 11.00 5
+ + + + + + + + + + + + + + + + + + + +
PE (x100) White MC612PA 1SNK158091R0000 5 11.00
U1 (x100) White MC612PA 1SNK158101R0000 5 11.00
U2 (x100) White MC612PA 1SNK158111R0000 5 11.00
U3 (x100) White MC612PA 1SNK158121R0000 5 11.00
V1 (x100) White MC612PA 1SNK158131R0000 5 11.00
V2 (x100) White MC612PA 1SNK158141R0000 5 11.00
V3 (x100) White MC612PA 1SNK158151R0000 5 11.00
W1 (x100) White MC612PA 1SNK158161R0000 5 11.00
W2 (x100) White MC612PA 1SNK158171R0000 5 11.00
W3 (x100) White MC612PA 1SNK158181R0000 5 11.00

L1 L2 L3 N PE L1 L2 L3 N PE

L1 L2 L3 N PE L1 L2 L3 N PE
Card with 100 markers, 5 different symbols repeated 20 times
L1-L2-L3-N-PE (x20) White MC612PA 1SNK159001R0000 5 11.00
L1
L1 L2 L3 N PE L1 L2 L3 N PEPEL2L2 L3L3 NN PEPE L1L1 L2L2 L3L3 NN
L1 PE
PE
L1 PE
L1 L2L2 L3L3 NN PEPE L1L1 L2L2 L3L3 NN
Card with 100 markers, 9 different symbols repeated 10 times
U1 U2 U3 V1 V2 V3 W1 W2 W3 U1 U1-U2-U3-V1-V2-V3-W1-W2-W3 (x10) + U1 (x10) White MC612PA 1SNK159011R0000 5 11.00
U1 U2 U3 V1 V2 V3 W1 W2 W3 U1

U1
U1
U1 U2 U3 V1 V2 V3 W1 W2 W3 U1U2U2 U3U3 V1V1 V2V2 V3V3 W1W1 W2W2 W3W3 U1U1
U1 U2U2 U3U3 V1V1 V2V2 V3V3 W1W1 W2W2 W3W3 U1U1
U1
1SNC160161S0201

PAGE 117
