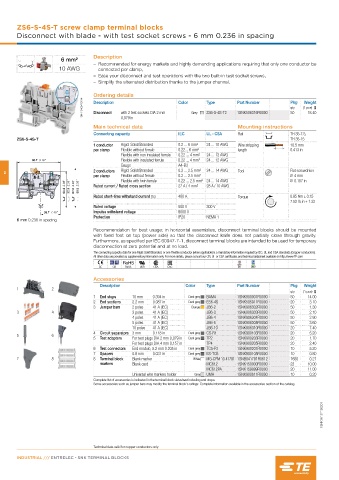

Page 118 - Entrelec Terminal Blocks Master Catalog

ZS6-S-4S-T screw clamp terminal blocks
Disconnect with blade - with test socket screws - 6 mm 0.236 in spacing

Description
6 mm²
– Recommended for energy markets and highly demanding applications requiring that only one conductor be
10 AWG connected per clamp,
– Ease your disconnect and test operations with the two built-in test socket screws,
– Simplify the alternated distribution thanks to the jumper channel.
Ordering details
1SNK161094V0014 Description with 2 test sockets DIA 2 mm Color Grey Type Part Number Pkg (1 pce) g
Weight
qty
18.40
Disconnect
ZS6-S-4S-T2
50
1SNK506316R0000
0,079 in
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
ZS6-S-4S-T TH 35-15
1 conductor Rigid: Solid/Stranded 0.2 ... 6 mm² 24 ... 10 AWG Wire stripping 10.5 mm
per clamp Flexible without ferrule 0.22... 6 mm² length 0.413 in
Flexible with non insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
80.7 3.18" Flexible with insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
Gauge A4-B3
3 2 conductors Rigid: Solid/Stranded 0.2 ... 2.5 mm² 24 ... 14 AWG Tool Flat screwdriver
per clamp Flexible without ferrule 0.2 ... 2.5 mm² Ø 4 mm
Ø 0.157 in
Flexible with twin ferrule
0.22 ... 2.5 mm² 24 ... 14 AWG
60.4 2.38" 52.9 2.08" 67.3 2.64" 59.8 2.35" Rated current / Rated cross section 27 A / 4 mm² 28 A / 10 AWG
Rated short-time withstand current (1s) 480 A Torque 0.85 Nm ± 0.15
7.52 lb.in ± 1.33
Rated voltage 500 V 300 V
35.7 1.40" Impulse withstand voltage 6000 V
Protection IP20 NEMA 1
6 mm 0.236 in spacing
Recommendation for best usage: in horizontal assemblies, disconnect terminal blocks should be mounted
with fixed foot on top (power side) so that the disconnect knife does not partially close through gravity.
Furthermore, as specified per IEC 60947-7-1, disconnect terminal blocks are intended to be used for temporary
disconnection at zero potential and at no load.
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CSA EAC BV DNV

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 2.2 mm 0.087 in Dark grey ES6-4S 1SNK505911R0000 20 3.10
3 Jumper bars 2 poles 41 A (IEC) Orange JB6-2 1SNK906302R0000 50 1.30
3 4 3 poles 41 A (IEC) JB6-3 1SNK906303R0000 50 2.10
4 poles 41 A (IEC) JB6-4 1SNK906304R0000 50 2.90
5 poles 41 A (IEC) JB6-5 1SNK906305R0000 50 3.60
10 poles 41 A (IEC) JB6-10 1SNK906310R0000 20 7.40
4 Circuit separators 3 mm 0.118 in Dark grey CS-R1 1SNK900103R0000 20 5.20
5 6
5 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
6 Test connectors End module, 5.2 mm 0.205 in Dark grey TC5-R1 1SNK900201R0000 10 5.20
7 Spacers 0.8 mm 0.031 in Dark grey ES-TC6 1SNK900105R0000 10 0.80
7 8 8 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC612 1SNK150000R0000 22 10.00
MC612PA 1SNK159999R0000 20 11.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

1SNK161071S0201

Technical data valid for copper conductors only.
