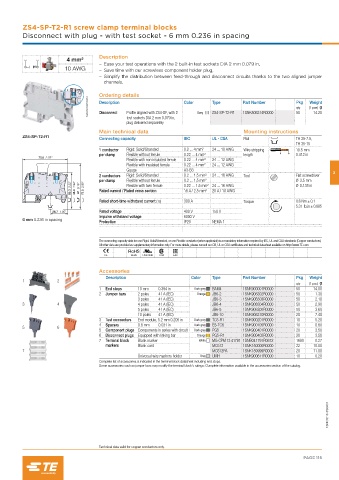

Page 123 - Entrelec Terminal Blocks Master Catalog

ZS4-SP-T2-R1 screw clamp terminal blocks
Disconnect with plug - with test socket - 6 mm 0.236 in spacing

Description
4 mm²
– Ease your test operations with the 2 built-in test sockets DIA 2 mm 0.079 in,
10 AWG – Save time with our screwless component holder plug,
– Simplify the distribution between feed-through and disconnect circuits thanks to the two aligned jumper
channels.
Ordering details
1SNK161037F0014 Description Color Type Part Number Pkg (1 pce) g
Weight
qty
Disconnect
Profile aligned with ZS4-SF, with 2
test sockets DIA 2 mm 0.079 in, Grey ZS4-SP-T2-R1 1SNK506314R0000 50 14.20
plug delivered separetely
Main technical data Mounting instructions
ZS4-SP-T2-R1
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
1 conductor Rigid: Solid/Stranded 0.2 ... 4 mm² 24 ... 10 AWG Wire stripping 10.5 mm
per clamp Flexible without ferrule 0.22 ... 4 mm² length 0.412 in
70.5 2.78"
Flexible with non insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
Flexible with insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
Gauge A3-B3 3
2 conductors Rigid: Solid/Stranded 0.2 ... 1.5 mm² 24 ... 16 AWG Tool Flat screwdriver
per clamp Flexible without ferrule 0.2 ... 1.5 mm² Ø 3.5 mm
56.3 2.22" 48.8 1.92" 81 3.19" 73.5 2.89" Rated current / Rated cross section 0.22 ... 1.5 mm² 24 ... 16 AWG Ø 0.138 in
Flexible with twin ferrule
20 A / 10 AWG
18 A / 2.5 mm²
Rated short-time withstand current (1s) 300 A Torque 0.6 Nm ± 0.1
5.31 lb.in ± 0.885
26.7 1.05" Rated voltage 400 V 150 V
Impulse withstand voltage 6000 V
6 mm 0.236 in spacing
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com

CE RoHS USR CNR CSA EAC

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 Jumper bars 2 poles 41 A (IEC) Orange JB6-2 1SNK906302R0000 50 1.30
3 poles 41 A (IEC) JB6-3 1SNK906303R0000 50 2.10
3 4 4 poles 41 A (IEC) JB6-4 1SNK906304R0000 50 2.90
5 poles 41 A (IEC) JB6-5 1SNK906305R0000 50 3.60
10 poles 41 A (IEC) JB6-10 1SNK906310R0000 20 7.40
3 Test connectors End module, 5.2 mm 0.205 in Dark grey TC5-R1 1SNK900201R0000 10 5.20
4 Spacers 0.8 mm 0.031 in Dark grey ES-TC6 1SNK900105R0000 10 0.80
5 6
5 Component plugs Components in series with circuit Dark grey PG5 1SNK900401R0000 20 3.50
6 Disconnect plugs Equipped with linking bar Orange PG5-R1 1SNK900402R0000 20 3.50
7 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC612 1SNK150000R0000 22 10.00
7 MC612PA 1SNK159999R0000 20 11.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

1SNK161040S0201

Technical data valid for copper conductors only.
