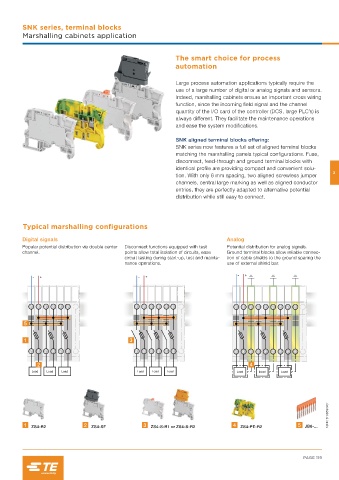

SNK series, terminal blocks
Marshalling cabinets application

The smart choice for process
automation

Large process automation applications typically require the
use of a large number of digital or analog signals and sensors.
Indeed, marshalling cabinets ensure an important cross wiring
function, since the incoming field signal and the channel
quantity of the I/O card of the controller (DCS, large PLC’s) is
always different. They facilitate the maintenance operations
and ease the system modifications.

SNK aligned terminal blocks offering:
SNK series now features a full set of aligned terminal blocks
matching the marshalling panels typical configurations. Fuse,
disconnect, feed-through and ground terminal blocks with
identical profile are providing compact and convenient solu-
3
tion. With only 6 mm spacing, two aligned screwless jumper
channels, central large marking as well as aligned conductor
entries, they are perfectly adapted to alternative potential
distribution while still easy to connect.

Typical marshalling configurations

Digital signals Analog
Popular potential distribution via double center Disconnect functions equipped with test Potential distribution for analog signals.
channel. points allow total isolation of circuits, ease Ground terminal blocks allow reliable connec-
circuit testing during start-up, test and mainte- tion of cable shields to the ground sparing the
nance operations. use of external shield bar.

- + - + - +

5

1 3

2 4
Load Load Load Load Load Load Load Load Load

1SNK161086S0201

1 ZS4-R2 2 ZS4-SF 3 ZS4-S-R1 or ZS4-S-R2 4 ZS4-PE-R2 5 JB6-...
