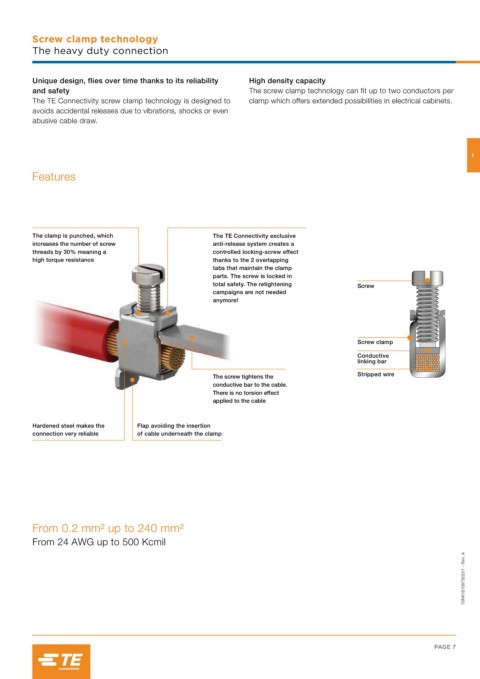

Screw clamp technology
The heavy duty connection
Unique design, flies over time thanks to its reliability High density capacity
and safety The screw clamp technology can fit up to two conductors per
The TE Connectivity screw clamp technology is designed to clamp which offers extended possibilities in electrical cabinets.
avoids accidental releases due to vibrations, shocks or even
abusive cable draw.
1
Features
The clamp is punched, which The TE Connectivity exclusive
increases the number of screw anti-release system creates a
threads by 30% meaning a controlled locking-screw effect
high torque resistance thanks to the 2 overlapping
tabs that maintain the clamp
parts. The screw is locked in
total safety. The retightening Screw
campaigns are not needed
anymore!
Screw clamp
Conductive
linking bar
Stripped wire
The screw tightens the
conductive bar to the cable.
There is no torsion effect
applied to the cable
Hardened steel makes the Flap avoiding the insertion
connection very reliable of cable underneath the clamp
From 0.2 mm² up to 240 mm²
From 24 AWG up to 500 Kcmil
